A high-performing and scalable family of switches for today’s demanding network requirements—providing excellent resiliency and reliability for network core and distributed solutions. IPv6 Ready certified for government and critical infrastructure deployments and OpenFlow v1.3-certified for advanced SDN.
Overview
- Build a resilient network core or distribution solution with the ability to stack multiple units using VCStackâ„¢
- Create resilient, distributed backbones that are easy to manage with long-distance stacking
- Flexible deployment options with Gigabit copper, fiber and PoE models with 10G and 40G uplinks
- Hot-swappable power supplies enable maximum uptime and minimal repair time
- Manage wireless access points with the Autonomous Wave Control (AWC) Lite wireless controller, which automatically optimizes wireless connectivity and throughput
- Market-leading SDN with industry certified OpenFlow v1.3
- Previously certified under Common Criteria; recertification in progress
- Reduce costs and automate network and device management with Autonomous Management Frameworkâ„¢ Plus (AMF Plus)
Key Features
- Active Fiber Monitoringâ„¢ (AFM) for secure fiber networks
- AlliedWare Plusâ„¢ Enterprise-class operating system
- Continuous Power over Ethernet (PoE+) for non-stop power delivery
- Media Access Control Security (MACSec) provides secure point-to-point Ethernet links
Certifications and Compliance
IPv6 Ready
Run by the IPv6 Forum, IPv6 Ready certification demonstrates conformance to IPv6 standards and validates interoperability of IPv6 products.
OpenFlow Conformance
OpenFlow Conformance is the highest assurance from the Open Networking Foundation that validates products conform to the OpenFlow specification.
Trade Agreement Act (TAA)
TAA compliance is mandatory for US Government purchases to prove that products are manufactured only in the USA or other approved countries.
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 100/1000X SFP Ports | 1/10 Gigabit SFP+ Ports | 10 Gigabit Stacking Ports | Module Slots | PoE Enabled Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|---|---|
| x930-28GTX | 24 | – | 4 (2 if stacked) | 2* | 1 | – | 288Gbps | 214.3Mpps |
| x930-28GPX | 24 | – | 4 (2 if stacked) | 2* | 1 | 24 | 288Gbps | 214.3Mpps |
| x930-28GSTX | 24 (combo) | 24 (combo) | 4 (2 if stacked) | 2* | 1 | – | 288Gbps | 214.3Mpps |
| x930-52GTX | 48 | – | 4 (2 if stacked) | 2* | 1 | – | 336Gbps | 250Mpps |
| x930-52GPX | 48 | – | 4 (2 if stacked) | 2* | 1 | 48 | 336Gbps | 250Mpps |
* Stacking ports can be configured as additional 1G/10G Ethernet ports when unit is not stacked, or if StackQS module is used
Physical
| Product | Width x Depth x Height | Mounting | Unpackaged Weight | Packaged Weight | Packaged Dimensions |
|---|---|---|---|---|---|
| x930-28GTX | 440 x 420 x 44 mm (17.32 x 16.54 x 1.73 in) |
Rack-mount | 5.1 kg (11.2 lb) | 7.1 kg (15.7 lb) | 56 x 53 x 15 cm (22.1 x 20.9 x 5.9 in) |
| x930-28GPX | 440 x 420 x 44 mm (17.32 x 16.54 x 1.73 in) |
Rack-mount | 5.1 kg (11.2 lb) | 7.1 kg (15.7 lb) | 56 x 53 x 15 cm (22.1 x 20.9 x 5.9 in) |
| x930-28GSTX | 440 x 420 x 44 mm (17.32 x 16.54 x 1.73 in) |
Rack-mount | 5.1 kg (11.2 lb) | 7.1 kg (15.7 lb) | 56 x 53 x 15 cm (22.1 x 20.9 x 5.9 in) |
| x930-52GTX | 440 x 420 x 44 mm (17.32 x 16.54 x 1.73 in) |
Rack-mount | 5.1 kg (11.2 lb) | 7.1 kg (15.7 lb) | 56 x 53 x 15 cm (22.1 x 20.9 x 5.9 in) |
| x930-52GPX | 440 x 420 x 44 mm (17.32 x 16.54 x 1.73 in) |
Rack-mount | 5.2 kg (11.5 lb) | 7.2 kg (15.9 lb) | 56 x 53 x 15 cm (22.1 x 20.9 x 5.9 in) |
| StackQS | 141 x 96.5 x 40.3 mm (5.56 x 3.80 x 1.59 in) |
Module | 0.2 kg (0.44 lb) | 1.2 kg (2.65 lb) | 40 x 25 x 10 cm (15.8 x 9.8 x 3.9 in) |
| x9EM/XT4 | 141 x 96.5 x 40.3 mm (5.56 x 3.80 x 1.59 in) |
Module | 0.2 kg (0.44 lb) | 1.2 kg (2.65 lb) | 40 x 25 x 10 cm (15.8 x 9.8 x 3.9 in) |
Power and Noise Characteristics
| Product | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise | Full PoE+ Load (PWR800) Max Power Consumption | Full PoE+ Load (PWR800) Max Heat Dissipation | Full PoE+ Load (PWR800) Noise | Full PoE+ Load (PWR1200) Max Power Consumption | Full PoE+ Load (PWR1200) Max Heat Dissipation | Full PoE+ Load (PWR1200) Noise |
|---|---|---|---|---|---|---|---|---|---|
| x930-28GTX | 84W | 285 BTU/h | 39.7 dBA | – | – | – | – | – | – |
| x930-28GPX | 84W | 286 BTU/h | 44.7 dBA | 564W | 287 BTU/h | 45.8 dBA | 808W | 301 BTU/h | 56.0 dBA |
| x930-28GSTX | 97W | 329 BTU/h | 39.7 dBA | – | – | – | – | – | – |
| x930-52GTX | 95W | 323 BTU/h | 39.7 dBA | – | – | – | – | – | – |
| x930-52GPX | 97W | 330 BTU/h | 44.7 dBA | 577W | 331 BTU/h | 45.8 dBA | 880W | 341 BTU/h | 56.0 dBA |
Noise: tested to ISO7779; front bystander position
Power over Ethernet Power Supply Combinations
| PSU Installed | PoE Power Available | Maximum PoE Ports Supported Class 1 (4.0W) | Maximum PoE Ports Supported Class 2 (7.0W) | Maximum PoE Ports Supported Class 3 (15.4W) | Maximum PoE Ports Supported Class 4 (30W) | Max Redundant PoE Power |
|---|---|---|---|---|---|---|
| PWR800 | 380W | 48 | 48 | 24 | 12 | – |
| PWR800 v2 | 380W | 48 | 48 | 24 | 12 | – |
| PWR800 + PWR800 | 740W | 48 | 48 | 48 | 24 | 380W |
| PWR800 v2 + PWR800 v2 | 740W | 48 | 48 | 48 | 24 | 380W |
| PWR1200 | 740W | 48 | 48 | 48 | 24 | – |
| PWR1200 v2 | 740W | 48 | 48 | 48 | 24 | – |
| PWR1200 (v1 or v2) + PWR1200 (v1 or v2) | 1440W | 48 | 48 | 48 | 48 | 740W |
Note: The x930 does not support mixed use of PWR800 and PWR800 v2
Ordering Information
AT-x930-28GTX-00(1)
24-port 10/100/1000T stackable switch with
4 SFP+ ports and dual hotswap PSU bays
AT-x930-28GPX-00(1)
24-port 10/100/1000T PoE+ stackable switch with
4 SFP+ ports and dual hotswap PSU bays
AT-x930-28GSTX-00(1)
24-port 10/100/1000T and 24-port 100/1000 SFP
stackable switch with 4 SFP+ ports and
dual hotswap PSU bays
AT-x930-52GTX-00(1)
48-port 10/100/1000T stackable switch with
4 SFP+ ports and dual hotswap PSU bays
AT-x930-52GPX-00(1)
48-port 10/100/1000T PoE+ stackable switch with
4 SFP+ ports and dual hotswap PSU bays
AT-RKMT-SL01
Sliding rack mount kit
Expansion Module
AT-StackQS
2 x QSFP+ expansion modules
AT-x9EM/XT4
4 x 10GBASE-T expansion module
Power Supplies (for all models)
AT-PWR150-xx (2)
150W system power supply
AT-PWR250 v2-xx (2),(3)
250W system power supply
AT-PWR250-80 (2)
250W DC system power supply
AT-PWR800-xx (2),(4)
800W PoE+ power supply
AT-PWR800 v2-xx (2),(4)
800W PoE+ power supply
AT-PWR1200-xx (2)
1200W PoE+ power supply
AT-PWR1200 v2-xx (2)
1200W PoE+ power supply
Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
(1) Trade Act Agreement compliant
(2) Power supplies must be ordered separately
(3) Available in the APAC region only
(4) The x930 does not support mixed use of PWR800 and PWR800 v2
Feature Licenses
| Name | Description | Includes | Stack Licensing |
|---|---|---|---|
| AT-FL-x930-01 | x930 Premium license | OSPF4(5) (16,000 routes) BGP4 (5) (5,000 routes) PIM-SMv6/SSMv6 (2,000 entries) VRF-Lite (64 domains) RADIUS-Full UDLD PTP Transparent Mod |
One license per stack member |
| AT-SW-APM10-1YR(6),(7) | Cumulative AMF Plus Master license | AMF Plus Master license for up to 10 nodes for 1 year | One license per stack |
| AT-SW-APM10-5YR(6),(7) | Cumulative AMF Plus Master license | AMF Plus Master license for up to 10 nodes for 5 years | One license per stack |
| AT-FL-x930-OF13-1YR | OpenFlow license | OpenFlow v1.3 for 1 year | Not supported on a stack |
| AT-FL-x930-OF13-5YR | OpenFlow license | OpenFlow v1.3 for 5 years | Not supported on a stack |
| AT-FL-x930-AAP-1YR | AMF Application Proxy license | AMF Application Proxy license for 1 year | One license per stack |
| AT-FL-x930-AAP-5YR | AMF Application Proxy license | AMF Application Proxy license for 5 years | One license per stack |
| AT-FL-x930-8032 | ITU-T G.8032 license | G.8032 ring protection Ethernet CFM |
One license per stack member |
| AT-FL-x930-CPOE | Continuous PoE license | Continuous PoE power for GPX models only | One license per stack member |
| AT-FL-x930-MSEC(8) | MACSec license | Media Access Control Security | One license per stack member |
| AT-FL-x930-MODB | Modbus license | Modbus for industrial applications | One license per stack member |
| AT-FL-x930-MRP | MRP license | Media Redundancy Protocol | One license per stack member |
| AT-SW-AWC10-1YR(9) | Cumulative AWC license | Autonomous Wave Control (AWC) license for up to 10 access points for 1 year | One license per stack |
| AT-SW-AWC10-5YR(9) | Cumulative AWC license | Autonomous Wave Control (AWC) license for up to 10 access points for 5 years | One license per stack |
| AT-SW-CB10-1YR-2022(10) | Cumulative AWC-CB and AWC-SC license | AWC Channel Blanket and AWC Smart Connect license for up to 10 access points for 1 year | One license per stack |
| AT-SW-CB10-5YR-2022(10) | Cumulative AWC-CB and AWC-SC license | AWC Channel Blanket and AWC Smart Connect license for up to 10 access points for 5 years | One license per stack |
(5) The standard switch software supports 64 OSPF and BGP routes
(6) From AW+ version 5.5.2-2 onwards, AMF Plus licenses provide all standard AMF network management and automation features. They also enable the AMF Plus intent-based networking features menu in Vista Manager EX (from version 3.10.1 onwards)
(7) Purchase one license per 10 nodes (up to 120 nodes maximum)
(8) MACSec is only supported on 1GbE downlink ports
(9) 5 APs can be managed for free. Purchase one license per 10 additional APs (up to 120 APs maximum)
(10) Channel Blanket and Smart Connect are not available as free services. Both an AWC-CB license and an AWC license are required for Channel Blanket and/or Smart Connect to operate. Purchase one AWC-CB license per 10 APs (up to 120 APs maximum). Channel Blanket is supported on TQ6602, TQ5403, and TQ5403e access points. Smart Connect is supported on TQ5403, and TQ5403e access points
All Models
x930-28GPX
24-port 10/100/1000T PoE+ stackable switch with 4 SFP+ ports and dual hot-swap PSU bays
Add to quote
x930-28GSTX
24-port 10/100/1000T and 24-port 100/1000 SFP stackable switch with 4 SFP+ ports and dual hotswap PSU bays
Add to quote
x930-28GTX
24-port 10/100/1000T stackable switch with 4 SFP+ ports and dual hot-swap PSU bays
Add to quote
x930-52GPX
48-port 10/100/1000T PoE+ stackable switch with 4 SFP+ ports and dual hot-swap PSU bays
Add to quote

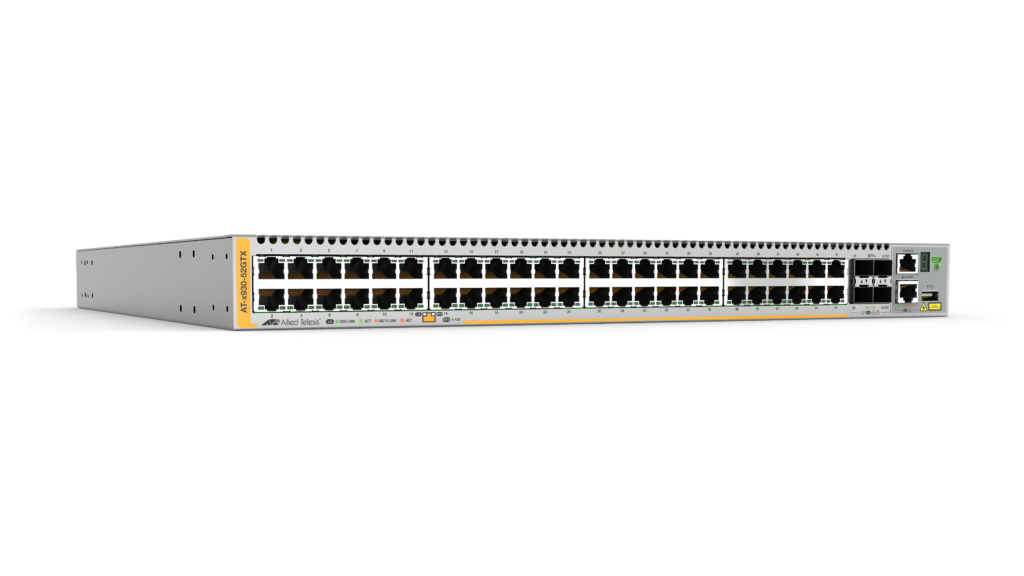

x930-52GTX
48-port 10/100/1000T stackable switch with 4 SFP+ ports and dual hot-swap PSU bays
Add to quoteAccessories

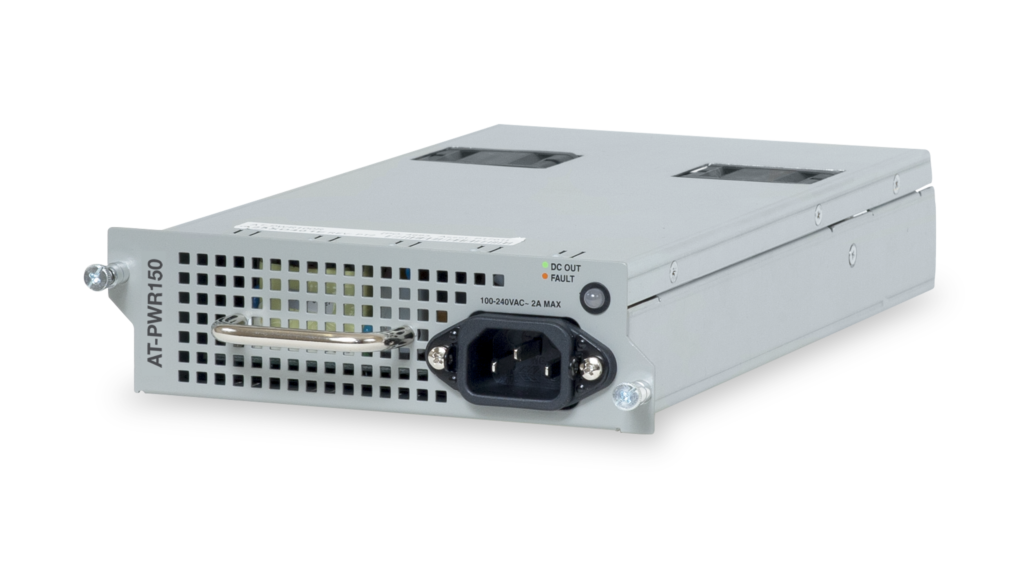

PWR150
150W system power supply

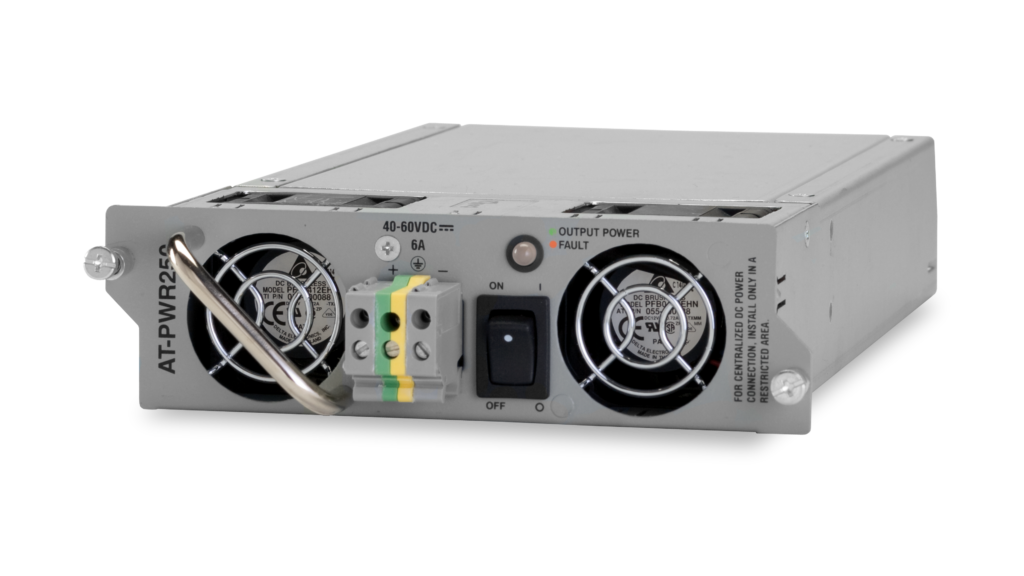

PWR250-80
250W DC system power supply

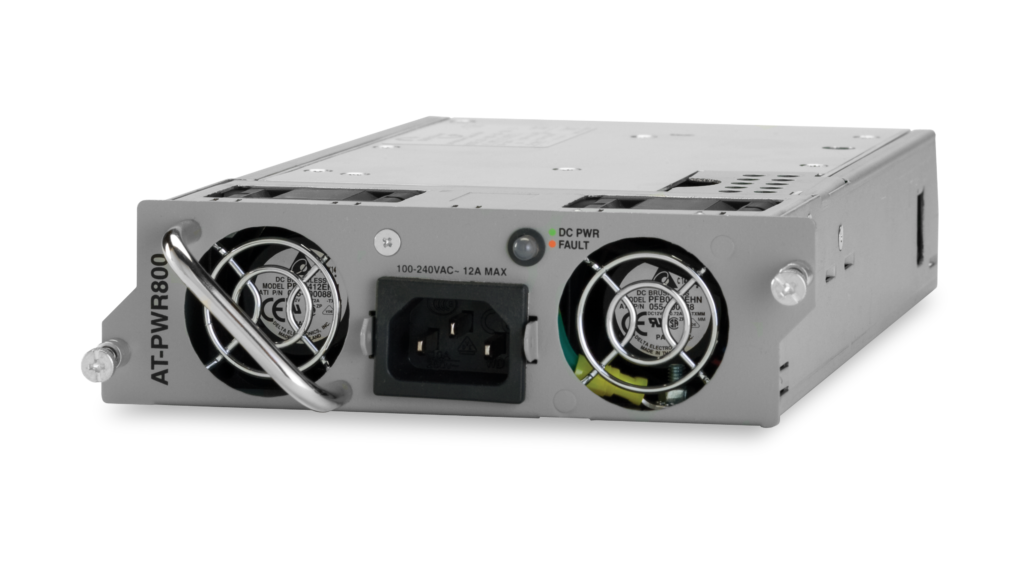

PWR800
800W AC system and PoE+ power supply

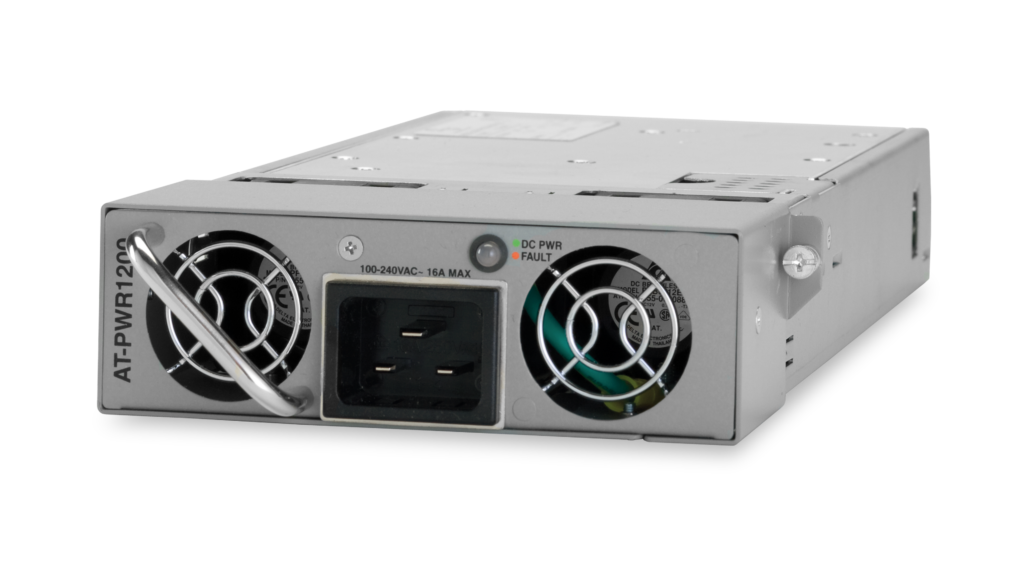

PWR1200
1200W PoE+ power supply

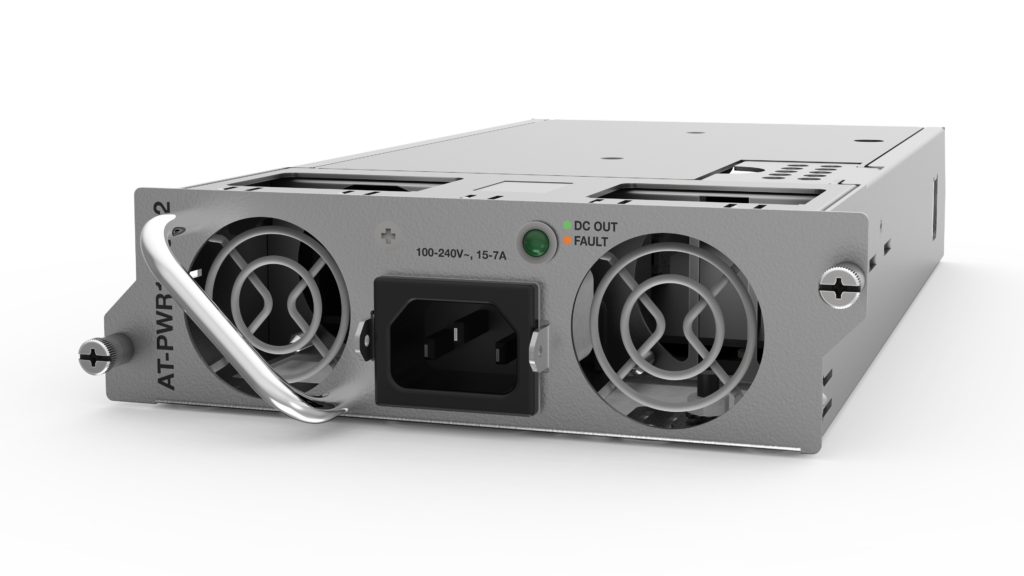

PWR1200 v2
1200W version 2 PoE+ power supply
QSFPSR4
40G SR4, (MPO), multi-mode, 100/150m
QSFPLR4
40G LR4 (LC), single-mode, CWDM, 10km
SP10SR
10G (LC), multi-mode, 300m
SP10SR/I
10G (LC), multi-mode, I-Temp, 300m
SP10ER40a/I
10G (LC) single-mode, I-Temp, 40km
SP10ZR80/I
10G (LC) single-mode, 80km
SP10TW1
SFP+ Twinax direct attach cable, 1m in length.
