Extend the distance of your network by converting Fast Ethernet data between twisted-pair cabling and single-mode fiber-optic cabling.
Overview
- Extend the distance of your network by converting Fast Ethernet data between twisted pair cabling and single-mode fiber-optic cabling
- Features a 100FX fiber-port and a 10/100TX twisted-pair port
- The fiber-optic port features an SC connector and an operating distance of 2-40 kilometers
- The twisted-pair port has an RJ-45 connector with a maximum operating distance of 100 meters
Key Features
- 2K MAC address tables
- Auto MDI/MDI-X
- Convert speed as well as media type
- DIP switches for port configuration
- Standalone or rack-mountable
- Store-and-forward switching mode
- Supports 1532 bytes frame
- Transparent to IEEE 802.1Q packets
All Models
Some models are End-of-Sale. Click here for more information

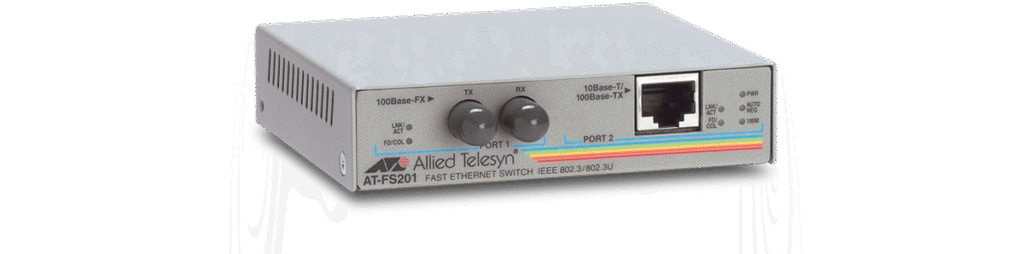

FS201
10/100TX to 100FX (ST) media and rate converter
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
06 Sep 2017
06 Sep 2017
06 Sep 2017
End of Software Support
End of Life
06 Sep 2022
06 Sep 2022
06 Sep 2022
Alternate Products

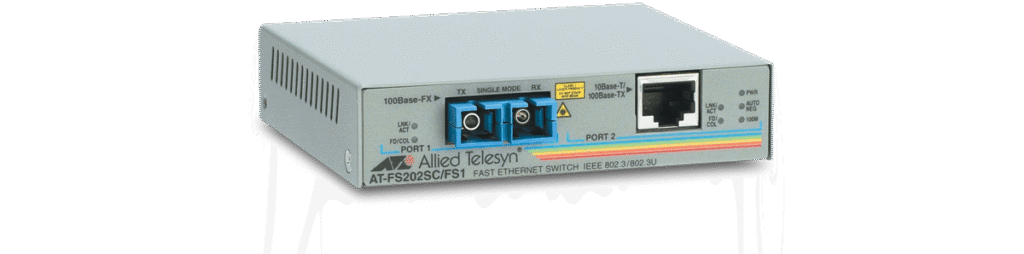

FS202
FS202 Fast Ethernet to Fiber Media and Rate Converter
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
06 Sep 2017
06 Sep 2017
06 Sep 2017
End of Software Support
End of Life
06 Sep 2022
06 Sep 2022
06 Sep 2022
Alternate Products

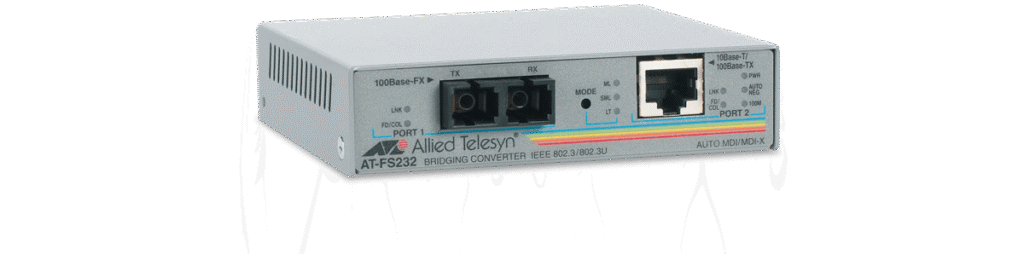

FS232
FS232 Fast Ethernet to Fiber Media and Rate Converter
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
06 Sep 2017
06 Sep 2017
06 Sep 2017
End of Software Support
End of Life
06 Sep 2022
06 Sep 2022
06 Sep 2022
Alternate Products
FS232/1
FS232/1 Fast Ethernet to Fiber Media and Rate Converter
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
06 Sep 2017
06 Sep 2017
06 Sep 2017
End of Software Support
End of Life
06 Sep 2022
06 Sep 2022
06 Sep 2022
Alternate Products
FS232/2
FS232/2 Fast Ethernet to Fiber Media and Rate Converter
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
06 Sep 2017
06 Sep 2017
06 Sep 2017
End of Software Support
End of Life
06 Sep 2022
06 Sep 2022
06 Sep 2022
Alternate Products
FS238A/1
10/100TX to 100LX (SC) BiDi media and rate converter
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
06 Sep 2017
06 Sep 2017
06 Sep 2017
End of Software Support
End of Life
06 Sep 2022
06 Sep 2022
06 Sep 2022
Alternate Products

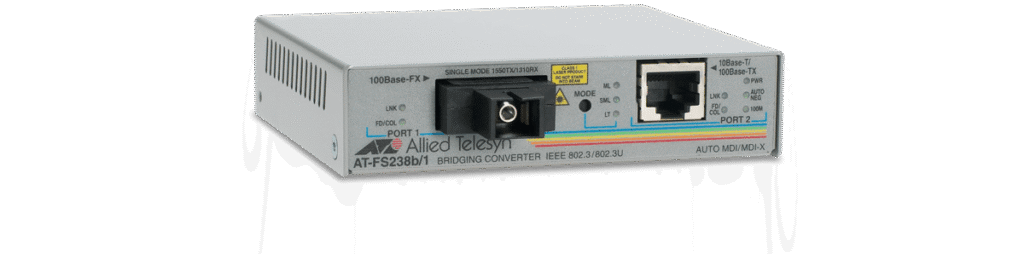

FS238B/1
Fast Ethernet to Fiber BiDi Media and Rate Converter
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
30 Nov 2016
30 Nov 2016
30 Nov 2016
End of Software Support
End of Life
30 Nov 2021
30 Nov 2021
30 Nov 2021
Alternate Products
Documentation
Datasheet: FS200 Series
FS200 Series 2-Port Fast Ethernet Speed/Media Converting Switches extend the distance of your network by converting Fast Ethernet data between twisted pair cabling and single-mode fiber-optic cabling.
Datasheet: MCR Accessories Series
Media Converter Mounting Hardware
AT-FS201 and AT-FS202 Installation Guide
This guide contains the hardware installation instructions for the AT-FS201 and AT-FS202.
Translated Safety Statements
Here are translations of the safety statements. Languages include English, German, Spanish, French, Italian, and Swedish.
