The Allied Telesis Enterprise-class TQ6702e GEN2 outdoor hybrid wireless AP features Wi-Fi 6 technology with 8 spatial streams (8×8) to deliver a raw capacity of 4.8 Gigabits. Dust and moisture protection and a wide operating temperature range supports outdoors installations. Multi-Gigabit uplink ports ensure maximum wireless network performance and eliminate bottlenecks.
Key Features
- 802.11ax (Wi-Fi 6) delivers four times the performance of the previous Wi-Fi standard, enabling immersive-experience applications and future capacity for connected IoT devices
- Automatically optimized wireless coverage and connectivity for a superior user experience with Autonomous Wave Controlâ„¢ (AWC)
- Centralized management and monitoring of your Wi-Fi network with AWC in Vista Manager, or use the web-based GUI for easy standalone AP management
- Easy user access management with Captive Portal
- Enable maximum performance and seamless roaming in Hybrid mode with simultaneous multi-channel and single-channel (Channel Blanket) operation
- Flexible deployment with Virtual APs with Multiple SSIDs
- Improved capacity and throughput from increased multi-client connectivity intelligence – powered by OFDMA and bi-directional Multi-User MIMO technology
- Lightning arresters, surge protection, and ultraviolet (UV) radiation resistance support outdoor installation in extreme conditions
- Weather-resistant enclosure for outdoor installation supporting extended operating range (-40°C~65°C)
Specifications
Physical
| Product | Width x Depth x Height | Weight | 100M/1G/2.5G/5G (RJ-45) Copper Ports | |
|---|---|---|---|---|
| TQ6702e GEN2 | 257 x 227 x 90 mm (10.12 x 8.94 x 3.54 in) |
4 x 4 (2.4GHz) + 8 x 8 (5GHz) | 4.4 kg* | 1 (PoE-in port) |
*With default antennas and a surge protector, without cables and mount kit
Power Characteristics
| Product | Power Supply | Average Power Consumption | Maximum Power Consumption | Max Heat Dissipation |
|---|---|---|---|---|
| TQ6702e GEN2 | PoE | 15.00W | 26.3W | 100.00 KJ/h |
Ordering Information
AT-TQ6702e GEN2-xx
Outdoor Wi-Fi 6 hybrid AP with 2 radios
(4×4 2.4GHZ and 8×8 5GHz) and embedded antenna
Where xx =
03 Regulatory Domain: Canada
02 Regulatory Domain: Taiwan
01 Regulatory Domain: United States Reserved
00 Regulatory Domain: Other countries(1)
(1) Please check the Compliance section on page 2 of the datasheet to see which countries are certified to use this access point.

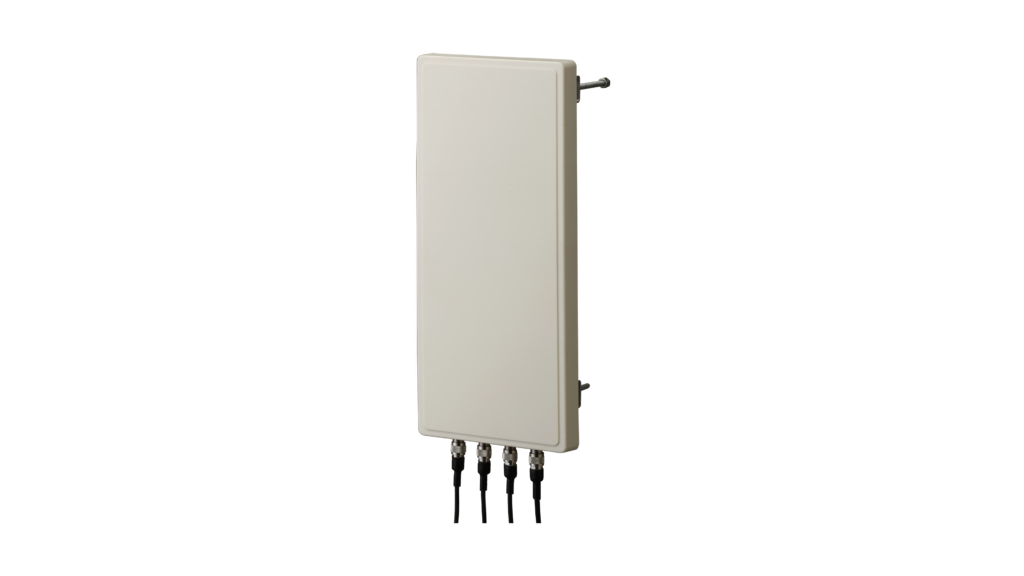

AT-TQ0301
Patch antenna for 2.4G/5G

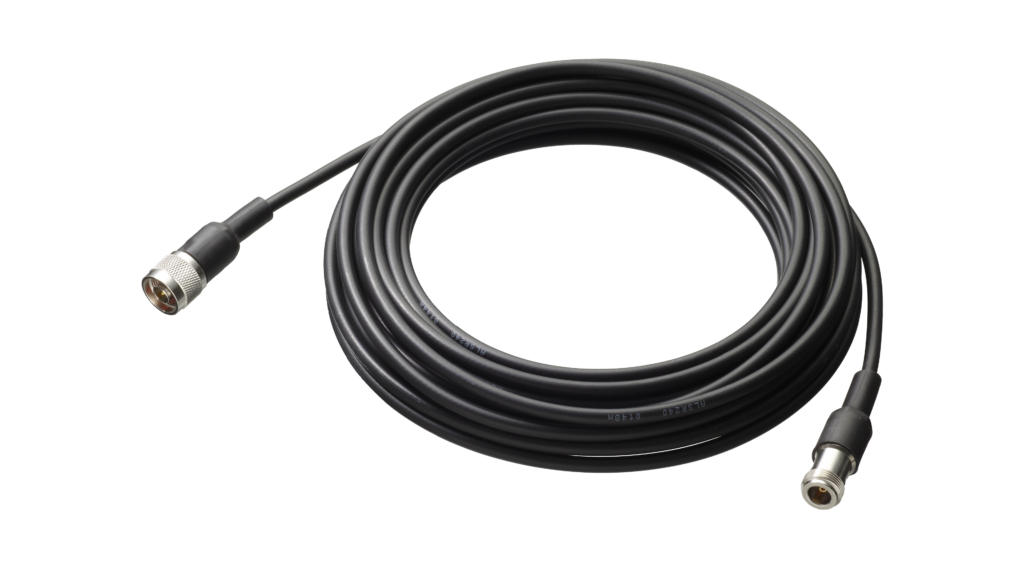

AT-TQ0064
Antenna extension cable of 10 m

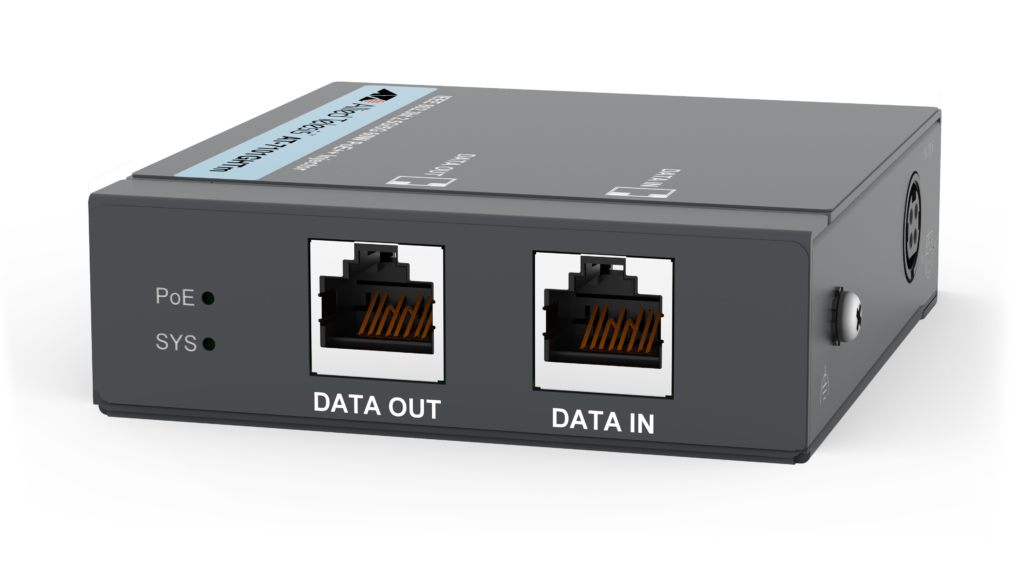

AT-7101GHTm-yy
Multi-Gigabit Ethernet PoE++ (802.3bt) injector
Where yy =
10 for US power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
Wireless Management Licenses(2)
Wireless management of APs is available from the Vista Manager EX network management platform, and from the Device GUI wireless controller running on the switch and firewall products listed in the following table.
| Platform | License Name | Description | Max Supported APs |
|---|---|---|---|
| Vista Manager EX | AT-FL-VISTA-BASE-1/5YR | Vista Manager EX network monitoring and management software license | NA |
| Vista Manager EX (Virtual (VRT)) | AT-FL-VISTA-AWC10-1/5YR(3) | Vista Manager AWC plug-in license for managing up to 10 access points | 3000 |
| Vista Manager EX (Virtual (VRT)) | AT-FL-VISTA-CB10-1/5YR-2022(4) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 3000 |
| Vista Manager EX (Network Appliance) | AT-FL-VISTA-AWC10-1/5YR(3) | Vista Manager AWC plug-in license for managing up to 10 access points | 500 |
| Vista Manager EX (Network Appliance) | AT-FL-VISTA-CB10-1/5YR-2022(4) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 500 |
| SwitchBlade x908 GEN2 | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 305 |
| SwitchBlade x908 GEN2 | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 300 |
| x950 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 185 |
| x950 Series | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 180 |
| x930 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 125 |
| x930 Series | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 120 |
| x550 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 45 |
| x550 Series | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 40 |
| x540L Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 45 |
| x540L Series | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 40 |
| x530 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 45 |
| x530 Series | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 40 |
| ARX200S-GTX | AT-RT-AWC10-1/5YR(7) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 30 |
| ARX200S-GTX | AT-RT-CB5-1/5YR-2022(6) | AWC-Channel Blanket and AWC-Smart Connect license for managing up to 5 access points | 5 |
| AR4050S UTM Firewall | AT-RT-AWC5-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 5 access points | 25 |
| AR4050S UTM Firewall | AT-RT-CB5-1/5YR(6) | AWC Channel Blanket and AWC Smart Connect license for up to 5 access points | 5 |
(2) Note that AWC-Smart Connect is not supported on the TQ6702e GEN2
(3) The AWC plug-in requires an AWC license, and a Vista Manager EX base license to operate on Vista Manager EX
(4) Channel Blanket and Smart Connect require an AWC-CB license, an AWC license, and a Vista Manager EX base licenses to operate on Vista Manager EX
(5) 5 APs can be managed for free. Purchase one license per 10 additional APs on switches, or one license per 5 additional APs on the AR4050S Firewall
(6) Channel Blanket and Smart Connect are not available as a free service. Both an AWC-CB license and an AWC license are required for Channel Blanket and Smart Connect to operate. Purchase one AWC-CB license per 10 APs on switches, or one license to manage 5 APs on the ARX200S-GTX UTM Firewall and AR4050S Firewall
(7) 20 APs can be managed for free on the ARX200S-GTX, and an additional 10 APs with a license.
Documentation
Datasheet: TQ6702e GEN2
Datasheet for Allied Telesis outdoor Wi-Fi 6 (802.11ax) Hybrid Wireless Access Point

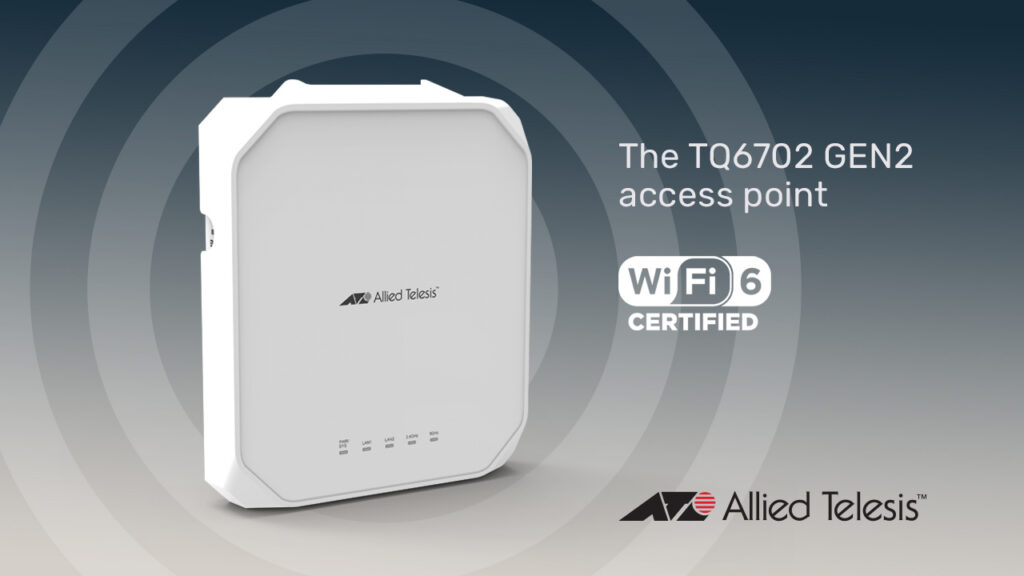

Video: The TQ6702 GEN2 Wi-Fi 6 access point
