Allied Telesis Enterprise-class TQ7403 hybrid wireless access point features Wi-Fi 6E technology, a 3 radio design supporting 2.4GHz, 5GHz, and 6GHz bands, and a raw capacity of up to 2.4 Gigabits. Multi-Gigabit uplink ports ensure maximum wireless network performance and eliminate bottlenecks.
Key Features
- Automatically optimized wireless coverage and connectivity for a superior user experience with Autonomous Wave Control (AWC)
- Centralized management and monitoring of your Wi-Fi network with AWC in Vista Manager, or use the web-based GUI for easy standalone AP management
- Easy user access management with Captive Portal
- Enable maximum performance and seamless roaming in Hybrid mode with simultaneous multi-channel and single-channel (Channel Blanket) operation
- Flexible deployment with Virtual APs with Multiple SSIDs
- Provide high-speed backbone connectivity with 2 x Multi-Gigabit uplink ports (1/2.5/5G) to remove bottlenecks and maximize throughput
- The addition of the 6GHz band reduces congestion on the 2.4GHz and 5GHz bands, with the 3 radio design supporting current and next generation connectivity needs
Specifications
Physical
| Product | Width x Depth x Height | Weight | 100M/1G/2.5G/5G (RJ-45) Copper Ports | |
|---|---|---|---|---|
| TQ7403 | 200 x 210 x 45 mm (7.87 x 8.23 x 1.78 in) With protrusion antenna: 290 x 210 x 160 mm (11.42 x 8.23 x 6.30 in) |
2 x 2 (2.4GHz) + 2 x 2 (5GHz) + 2 x 2 (6GHz) |
1.2 kg (2.64 lb) | 2 (PoE-in port) |
Power Characteristics
| Product | Power Supply | Average Power Consumption | Maximum Power Consumption | Max Heat Dissipation |
|---|---|---|---|---|
| TQ7403 | 100-240VAC | 14W | 18W | 61.4 BTU/h |
| PoE | 15W | 19.4W | 66.15 BTU/h |
Ordering Information
AT-TQ7403-xx
Enterprise-Class hybrid Wi-Fi 6E AP with 3 radios
(2×2 2.4GHz and 2×2 5GHz and 2×2 6GHz)
embedded and external antenna
Where xx =
05 Other countries(1)
02 Taiwan
01 United States Reserved
00 EMEA
(1) Please check the Compliance section on page 2 of the datasheet to see which countries are certified to use these access points.
AT-TQ0301
Patch antenna for 2.4G/5G
One required per TQ7403
AT-TQ0064
Antenna extension cable of 10 m
At least two units required per TQ7403
AT-PWRADP-01
AC adapter

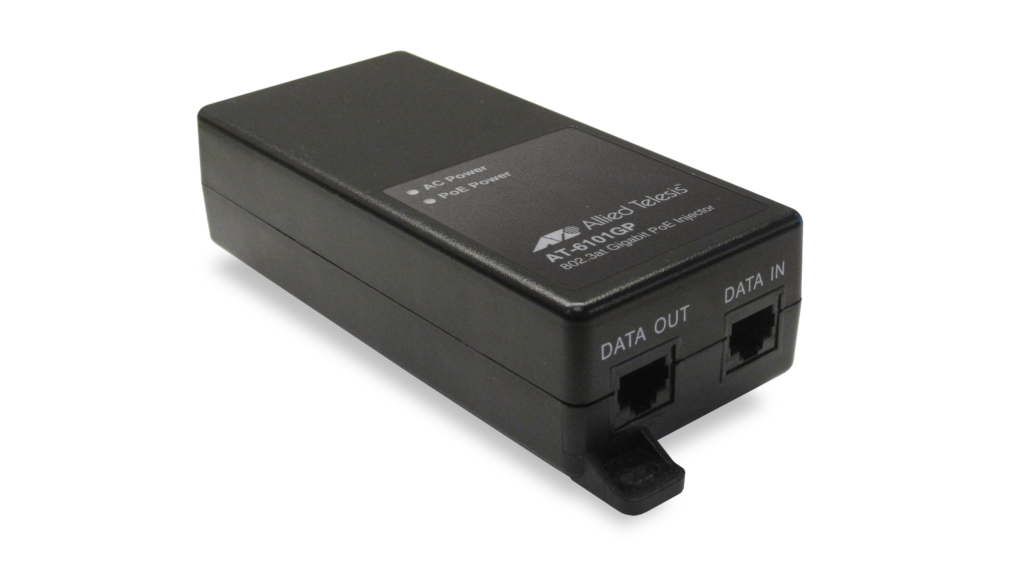

AT-6101GP-yy
Gigabit Ethernet PoE+ (802.3at) injector
AT-7101GHTm-yy
Multi-Gigabit Ethernet PoE++ (802.3bt) injector
AT-BRKT-CONV-AP1
Replacement bracket converter
Where yy =
10 for US power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
Wireless Management Licenses(2)
Wireless management of APs is available from the Vista Manager EX network management platform, and from the Device GUI wireless controller running on the switch and firewall products listed in the following table.
| Platform | License Name | Description | Max Supported APs |
|---|---|---|---|
| Vista Manager EX | AT-FL-VISTA-BASE-1/5YR | Vista Manager EX network monitoring and management software license | NA |
| Vista Manager EX (Virtual (VRT)) | AT-FL-VISTA-AWC10-1/5YR(3) | Vista Manager AWC plug-in license for managing up to 10 access points | 3000 |
| Vista Manager EX (Virtual (VRT)) | AT-FL-VISTA-CB10-1/5YR-2022(4) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 3000 |
| Vista Manager EX (Network Appliance) | AT-FL-VISTA-AWC10-1/5YR(3) | Vista Manager AWC plug-in license for managing up to 10 access points | 500 |
| Vista Manager EX (Network Appliance) | AT-FL-VISTA-CB10-1/5YR-2022(4) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 500 |
| SwitchBlade x908 GEN2 | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 305 |
| SwitchBlade x908 GEN2 | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 300 |
| x950 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 185 |
| x950 Series | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 180 |
| x930 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 125 |
| x930 Series | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 120 |
| x550 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 45 |
| x550 Series | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 40 |
| x540L Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 45 |
| x540L Series | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 40 |
| x530 Series | AT-SW-AWC10-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 45 |
| x530 Series | AT-SW-CB10-1/5YR-2022(6) | Vista Manager AWC-Channel Blanket and AWC-Smart Connect license for managing up to 10 access points | 40 |
| ARX200S-GTX | AT-RT-AWC10-1/5YR(7) | Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points | 50 |
| ARX200S-GTX | AT-RT-CB5-1/5YR-2022(6) | AWC Channel Blanket and AWC Smart Connect license for up to 5 access points | 5 |
| AR4050S UTM Firewall | AT-RT-AWC5-1/5YR(5) | Cumulative Autonomous Wave Controller (AWC) license for up to 5 access points | 25 |
| AR4050S UTM Firewall | AT-RT-CB5-1/5YR-2022(6) | AWC Channel Blanket and AWC Smart Connect license for up to 5 access points | 5 |
(2) Note that AWC-Smart Connect is not supported on the TQ7403
(3) The AWC plug-in requires an AWC license, and a Vista Manager EX base license to operate on Vista Manager EX
(4) Channel Blanket and Smart Connect require an AWC-CB license, an AWC license, and a Vista Manager EX base licenses to operate on Vista Manager EX
(5) 5 APs can be managed for free. Purchase one license per 10 additional APs on switches, or one license per 5 additional APs on the AR4050S Firewall
(6) Channel Blanket and Smart Connect are not available as a free service. Both an AWC-CB license and an AWC license are required for Channel Blanket and Smart Connect to operate. Purchase one AWC-CB license per 10 APs on switches, or one license to manage 5 APs on the AR4050S Firewall
(7) 20 APs can be managed for free on the ARX200S-GTX, and an additional 30 APs with a license
Documentation

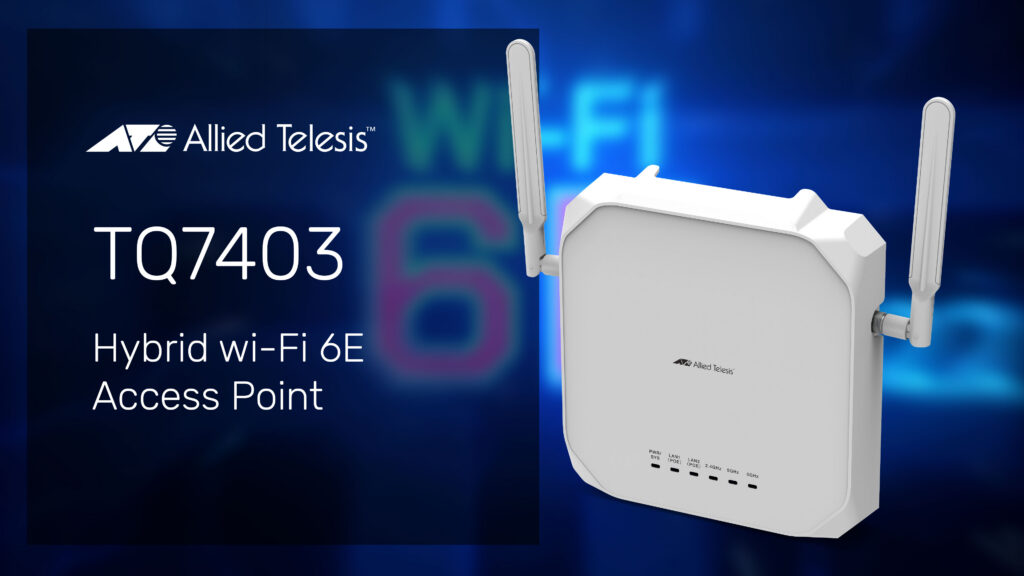

Video: TQ7403 Hybrid Wi-Fi 6E Wireless Access Point
