TQ7413-R

Wi-Fi 7 Tri-band (802.11be) Wireless Access Point

Allied Telesis TQ7413-R Wi-Fi 7 AP ensures superior performance in ultra-dense high mobility environments, and seamlessly supports mission-critical connectivity, real-time interactive experiences, and anywhere always-on Wi-Fi is essential.

A 3-radio design uses the 2.4GHz, 5GHz, and 6GHz bands, with a raw capacity of up to 9 Gigabits – and it runs the Enterprise-class AlliedWare Plus operating system.

Add to quoteView Datasheet

Key Features

Auto-detection and connection of client devices using Passpoint® and OpenRoaming
Automated backup, plug-and-play recovery, and zero-touch network roll-outs with the Autonomous Management Framework Plus (AMF Plus)
Centralized management and monitoring of larger Wi-Fi networks with AWC in Vista Manager
Consistent administration across the network using the same Enterprise-class AlliedWare Plus operating system as Allied Telesis switches, firewalls, and routers
Easy user access management with Captive Portal
Exceptional Wi-Fi user experience with automatically optimized wireless coverage and connectivity using Autonomous Wave Control (AWC)
Reduce both operating expenditure at scale, and long-term TCO, with the low power consumption of the TQ7413-R
Remove bottlenecks and maximize throughput with high-speed backbone connectivity using 2 x Multi-Gigabit uplink ports (1/2.5/5/10G)
Simplified management of smaller Wi-Fi networks with the wireless controller built-in to the Device GUI
Support immersive experience and other high-bandwidth applications, and increased client connections in busy environments, with the performance of Wi-Fi 7 (802.11be)
Visibility of application usage from the wireless edge using Deep Packet Inspection (DPI), with time-based statistics and graphs for proactive monitoring in Vista Manager

Specifications

Physical

Product	Width x Depth x Height	Radios	Weight	100M/1000M/2.5G/5G/10G (RJ-45) Copper Ports
TQ7413-R	240 x 240 x 45 mm (9.4 x 9.4 x 1.8 in)	2×2 2.4GHz and 2×2 5GHz and 2×2 6GHz	1.5 kg (3.3 lb)	2 (PoE-in port)

Power consumption (Preliminary)⁽¹⁾

Product	Power Supply	Maximum Power Consumption
TQ7413-R	100~240VAC	25.0W
	PoE	26.05W

⁽¹⁾ Max Throughput conditions with 2-Multigigabit Ethernet ports and 3-Radios. USB (2.5W). Values are preliminary estimates. Final specifications will be confirmed upon product validation and may change.

Ordering Information

AT-TQ7413-R-xx⁽²⁾

Enterprise-Class Wi-Fi 7 AP with 3 radios
(2×2 2.4GHz and 2×2 5GHz and 2×2 6GHz)
and embedded antenna, Trade Act Agreement compliant

⁽²⁾ Check for availability in your region

Where xx =

05 Regulatory Domain: Malaysia

00 Regulatory Domain: Europe

Where yy =

10 for US power cord

30 for UK power cord

40 for Australian power cord

50 for European power cord

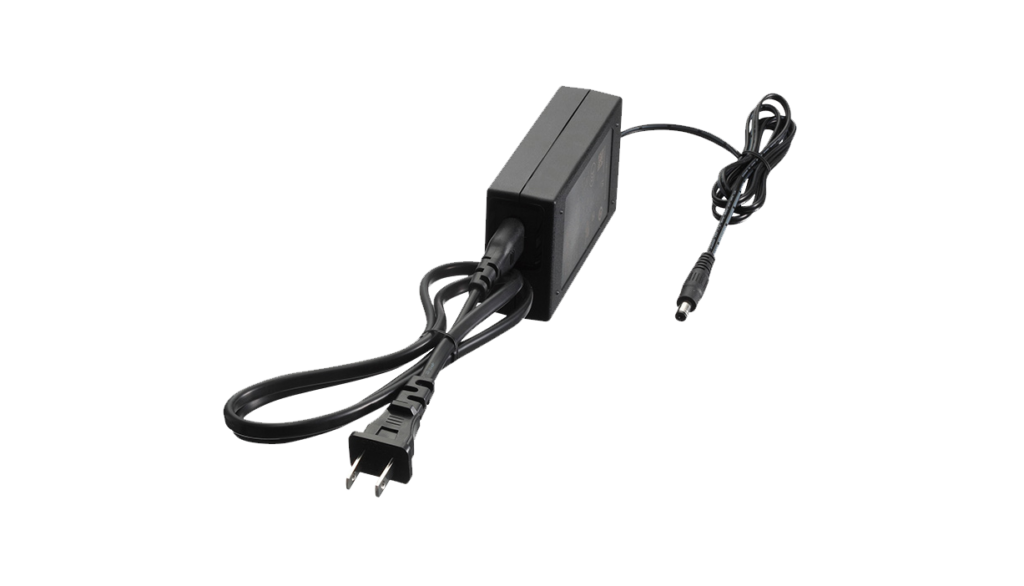

AT-PWRADP-01

AC adapter for TQ7413-R

AT-7101GHTm-yy

Multi-Gigabit Ethernet PoE++ (802.3bt) injector

AT-BRKT-CONV-AP1

Replacement bracket converter

Licenses

The TQ7413-R integrates with Vista Manager EX for centralized wireless management and automation at scale. For smaller deployments, the embedded wireless controller within supported Allied Telesis switch and firewall platforms enables streamlined local management. Flexible licensing models support scalable growth from single-site installations to distributed enterprise environments.

Platform	License Name	Description	Max Supported APs
Vista Manager EX	AT-FL-VISTA-BASE-1/5YR	Vista Manager EX network monitoring and management software license	NA
Vista Manager EX (Virtual (VRT))	AT-FL-VISTA-AWC10-1/5YR	Vista Manager AWC plug-in license for managing up to 10 access points	3000
Vista Manager EX (Network Appliance)	AT-FL-VISTA-AWC10-1/5YR	Vista Manager AWC plug-in license for managing up to 10 access points	500
SwitchBlade x908 GEN2	AT-SW-AWC10-1/5YR	Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points	305
x950 Series	AT-SW-AWC10-1/5YR	Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points	185
x930 Series	AT-SW-AWC10-1/5YR	Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points	125
x550 Series	AT-SW-AWC10-1/5YR	Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points	45
x540L Series	AT-SW-AWC10-1/5YR	Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points	45
x530 Series	AT-SW-AWC10-1/5YR	Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points	45
ARX200S-GTX	AT-RT-AWC10-1/5YR	Cumulative Autonomous Wave Controller (AWC) license for up to 10 access points	50
AR4050S UTM Firewall	AT-RT-AWC5-1/5YR	Cumulative Autonomous Wave Controller (AWC) license for up to 5 access points	25
