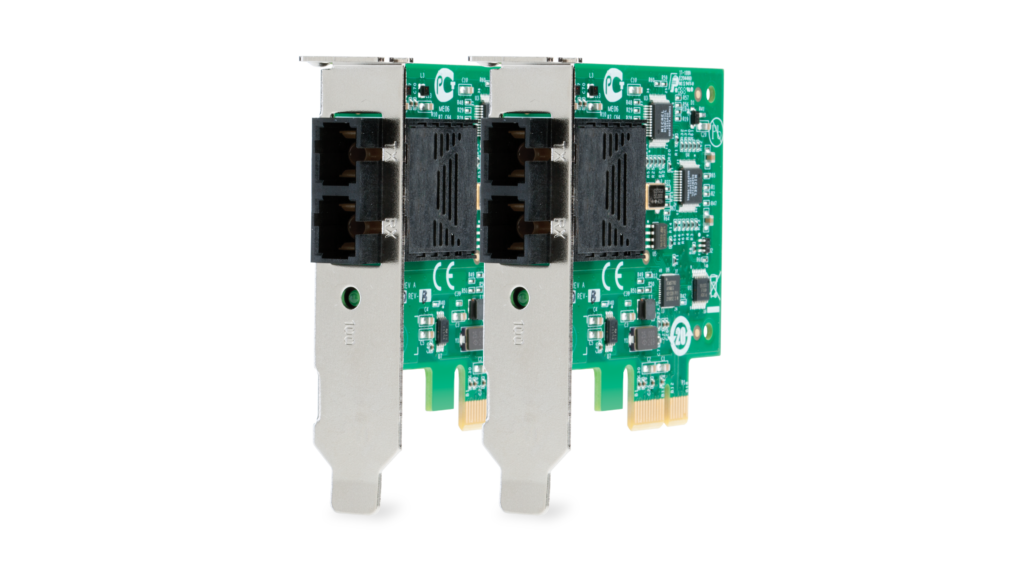

2711FXa Series

Fast Ethernet PCIe Fiber Network Adapters

Our Fast Ethernet Fiber PCI-Express Network Adapters provide the ultimate solution for upgrading to PCI-Express.

Comprehensive Windows utility that performs tests, diagnostics and analysis
Designed for fiber-to-desktop networks that need secure and reliable systems
Ideal for government, education or other networks with high security requirements
Includes technical support, ensuring trouble-free installation

Audio/Video Bridging (AVB)
Available with LC, SC, ST or MT-RJ multi-mode fiber connections
Available with SC and LC single-mode fiber connections
IEEE 802.1p-based traffic prioritization
IEEE 802.1x flow control
IPv6
Jumbo frame up to 9.6KB
Low-profile and standard height brackets included
MSI and MSI-x
PCIe (PCI-Express) x1 interface
PXE (2.1) remote boot support
Receive-Side Scaling (RSS)
RoHS compliant
SNMP
TCP checksum RX/TX supported
Trade Agreement Act (TAA) Compliant
Wake-on-LAN (WoL) supported (enabled by default, utility to disable available in firmware)

TAA compliance is mandatory for US Government purchases to prove that products are manufactured only in the USA or other approved countries.

Model	Width x Height	Weight	Connector	Power Consumption
2711FXa/SC	7.7 x 6.9 cm (3.0 in x 2.7 in)	50 g (1.76 oz)	100FX SC PCIe x1	2W

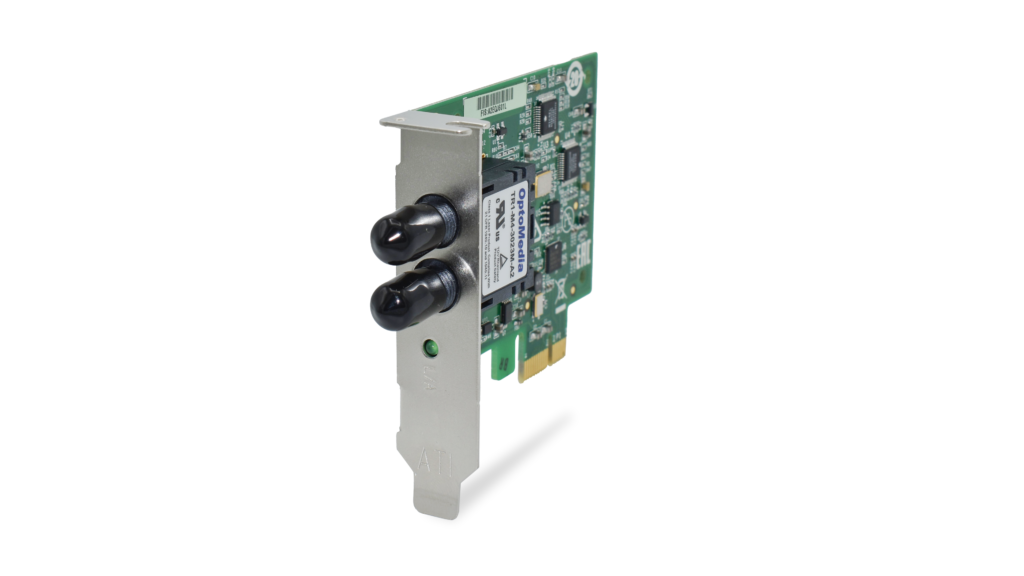

2711FXa/ST	7.7 x 6.9 cm (3.0 in x 2.7 in)	50 g (1.76 oz)	100FX ST PCIe x1	2W

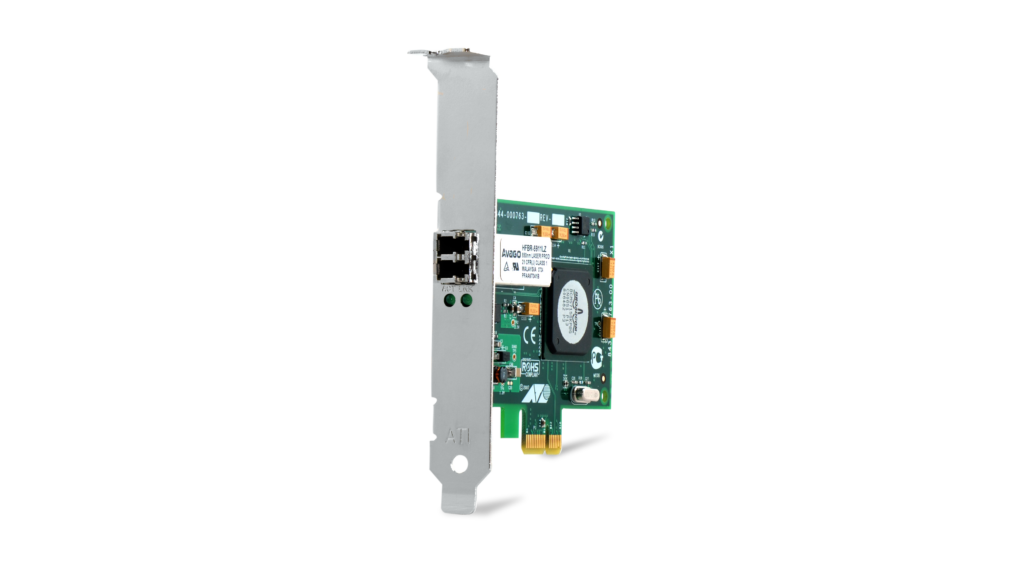

2711FXa/LC	7.7 x 6.9 cm (3.0 in x 2.7 in)	50 g (1.76 oz)	100FX LC PCIe x1	2W
