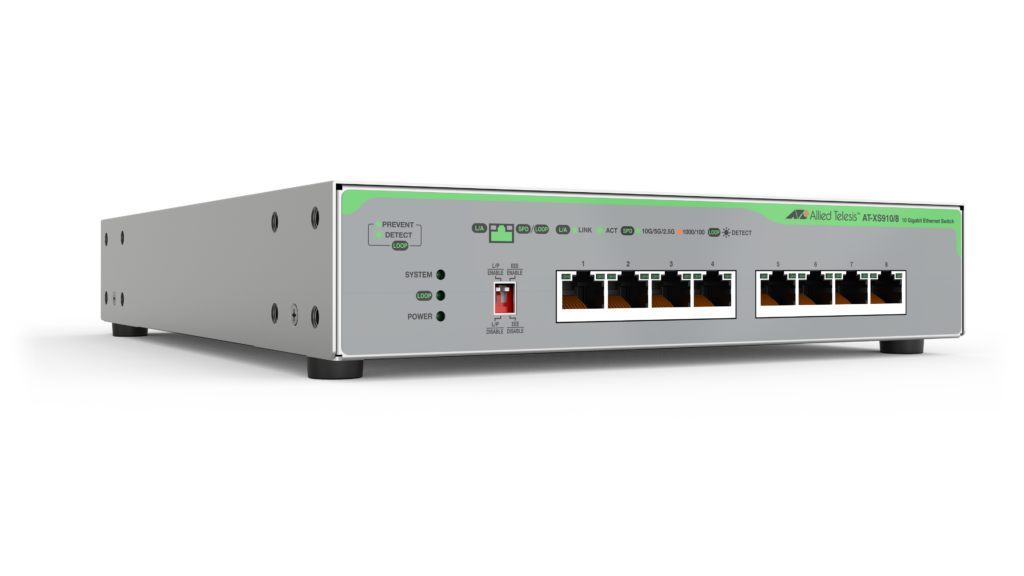

The XS910/8 switch provides 8 x 100M/1/2.5/5/10G ports in a high-speed unmanaged switching solution for small networks. Multi-Gigabit connectivity supports today’s high-bandwidth interactive applications, while a fanless compact design provides silent operation for flexible deployment.
Overview
- Easily configure features like loop guard and Energy Efficient Ethernet with front panel DIP switches
- Enable immersive experience applications and high data throughput at the network edge with connectivity up to 10Gbps
- Provide high performance network aggregation over existing building cabling with Multi-Gigabit connectivity at 2.5 or 5Gbps
- Silent operation and a compact design support flexible deployment in work areas
Key Features
- Auto-negotiation of port speed, duplex, and MDI/MDI-X
- EAP/BPDU pass-through for resilient networking
- Full-duplex flow control
- Simple plug-and-play installation
- Up to 16K MAC addresses, and 12KB jumbo frames
- Wide operating temperature of 0-50°C
Specifications
| Product | 100M/1/2.5/5/10 Gigabit Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|
| XS910/8 | 8 | 160Gbps | 119.04Mpps |
Physical
| Product | Width x Depth x Height | Mounting | Unpackaged Weight | Packaged Weight | Packaged Dimensions |
|---|---|---|---|---|---|
| XS910/8 | 210 x 275 x 42.5 mm (8.27 x 10.83 x 1.67 in) |
Rack-mount | 2.1 kg (4.63 lb) | 2.78 kg (6.13 lb) | 26 x 43.5 x 10 cm (10.23 x 17.12 x 3.93 in) |
Â
Ordering Information
XS910/8-xx
8-port 100M/1/2.5/5/10 Gigabit with single fixed
power supply
Where xx =
10 for US power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
AT-RKMT-J14
Rack mount kit for XS910/8
AT-RKMT-J15
Rack mount shelf for XS910/8
AT-BRKT-J24
Wall mount kit for XS910/8
AT-STND-J03
Stand-kit for AT-XS910/8
All Models
XS910/8
The CentreCOM XS910/8 offers high-speed unmanaged switching solutions for small networks.
Add to quoteAccessories
RKMT-J14
The RKMT-J14 rackmount kit to install one device in a 19-inch equipment rack
RKMT-J15
Rackmount kit to install two devices side by side in a 19-inch equipment rack

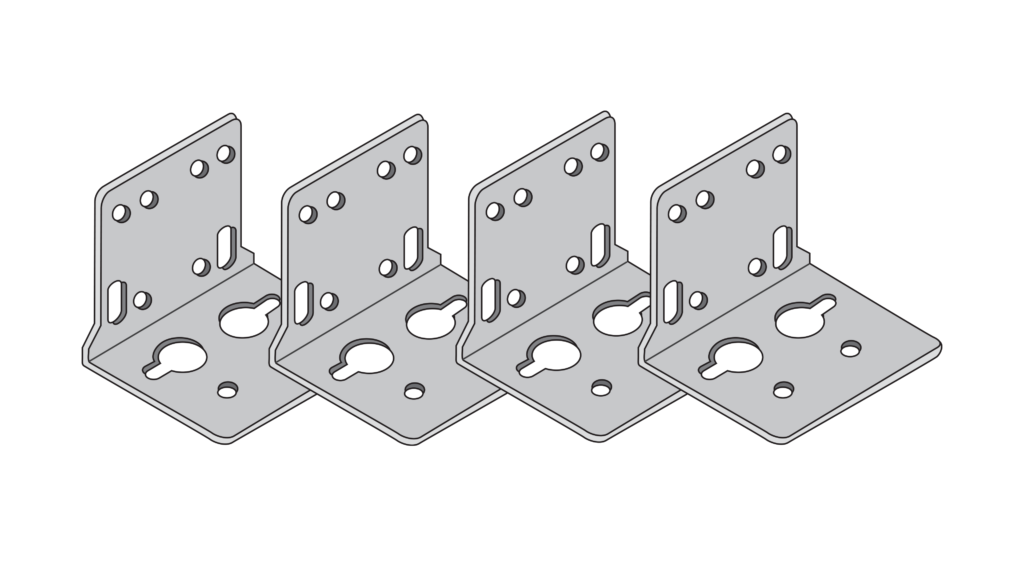

BRKT-J24
Wall mount kit for small switches.
STND-J03
AT-STND-J03 is a dedicated kit for installing Allied Telesis hardware products vertically.
Documentation
Datasheet: CentreCOM XS910/8
Product information for the CentreCOM XS910/8 10 Gigabit Ethernet Unmanaged Switch

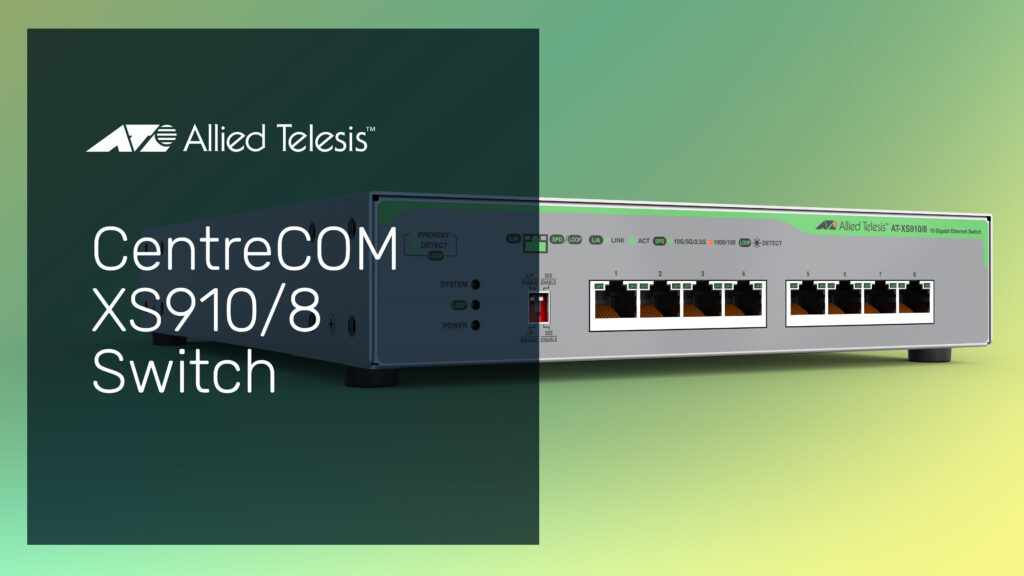

Video: CentreCOM XS910/8 Multi-Gigabit Switch
