The Allied Telesis CentreCOM® GS920 Series switches offer secure Gigabit switching performance in a cost-effective package easily deployed in work areas and smaller networks. Front-panel DIP switches provide simple configuration of commonly used features.
Overview
- High performance Gigabit network access for bandwidth intensive applications
- Reduced operating costs with Energy Efficient Ethernet (EEE)
- Support for different size workgroups with 8, 16 and 24 port models
Key Features
- Flow control manages traffic throughput
- Force MDI avoids incorrect cabling and possible network loops
- Loop Detection maximizes network availability
- Speed/duplex setting per port to connect embedded or legacy devices
Specifications
Physical
| Product | Width x Depth x Height | Weight | Switching Capacity | MAC Address | Power Current | Max Power Consumption |
|---|---|---|---|---|---|---|
| GS920/8 | 210 x 121 x 38 mm (8.27 x 4.76 x 1.50 in) |
0.8 kg (1.76 lb) | 16Gbps | 4K | 0.2A | 4.5W |
| GS920/8PS | 210 x 275 x 42.5 mm (8.27 x 10.83 x 1.67 in) |
1.6 kg (3.53 lb) | 16Gbps | 4K | 1.7A | See table below |
| GS920/16 | 263 x 179 x 38 mm (10.35 x7.05 x 1.50 in) |
1.5 kg (3.31 lb) | 32Gbps | 8K | 0.3A | 12W |
| GS920/24 | 341 x 210 x 44 mm (13.43 x 8.27 x 1.73 in) |
2.1 kg (4.63 lb) | 48Gbps | 8K | 0.4A | 18W |
PoE Power Characteristics
| Product | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | Full PoE+ Load Max Power Consumption | Full PoE+ Load Max Heat Dissipation | Max PoE Power | 7.5W Max PoE Sourcing Ports | 15W Max PoE Sourcing Ports | 30W PoE+ Max PoE Sourcing Ports |
|---|---|---|---|---|---|---|---|---|
| GS920/8PS | 5.4W | 8 BTU/h | 74W | 254 BTU/h | 62W | 8 | 4 | 2 |
Â
Ordering Information
AT-GS920/8-xx
8-port 10/100/1000T unmanaged switch with
internal PSU
AT-GS920/8PS-xx
8-port 10/100/1000T POE+ unmanaged switch
with internal PSU
AT-GS920/16-xx
16-port 10/100/1000T unmanaged switch with
internal PSU
AT-GS920/24-xx
24-port 10/100/1000T unmanaged switch with
internal PSU
AT-BRKT-J23
Wall mount kit for AT-GS920/8, 16
AT-RKMT-J05
Rack-mount kit for AT-GS920/16
AT-RKMT-J08
Rack-mount kit for AT-GS920/8
AT-BRKT-J24
Wall mount kit for AT-GS920/8PS
AT-RKMT-J14/-J15
Rack-mount kit for AT-GS920/8PS
Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
All Models

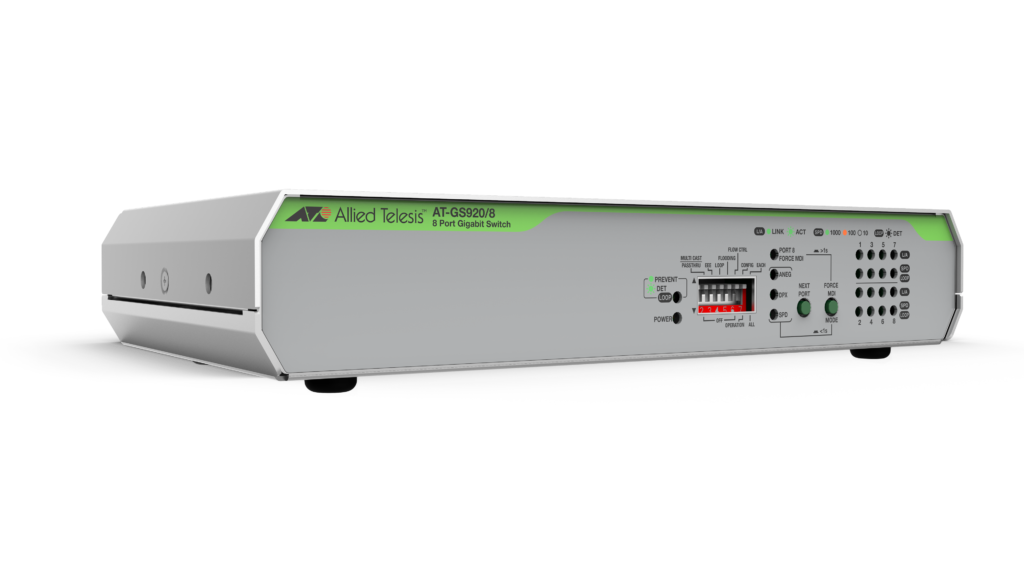

GS920/8
Unmanaged switch with 8 x 10/100/1000T ports, internal PSU and DIP switches for simple configuration.
Add to quote

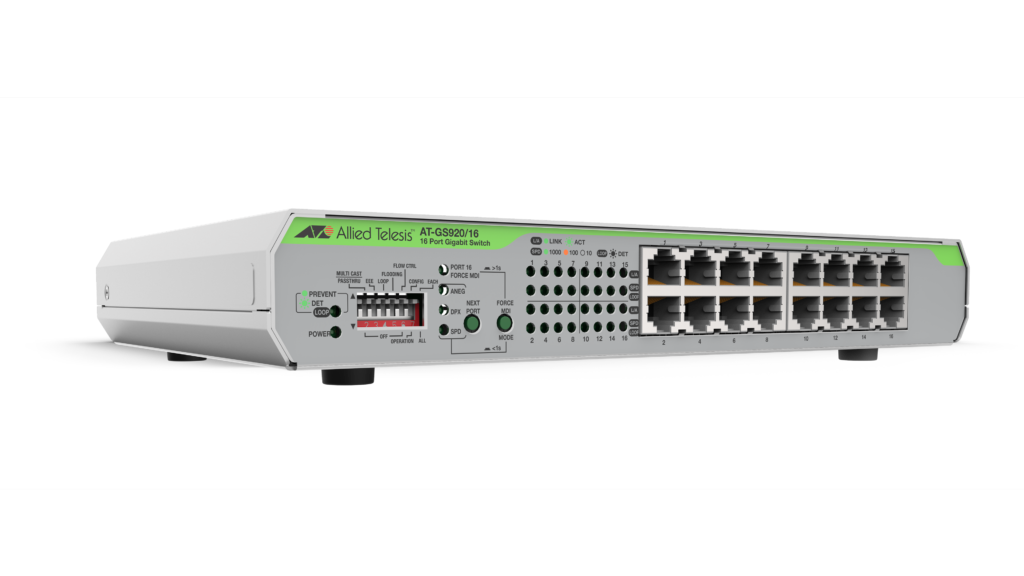

GS920/16
Unmanaged switch with 16 x 10/100/1000T ports, internal PSU and DIP switches for simple configuration.
Add to quote

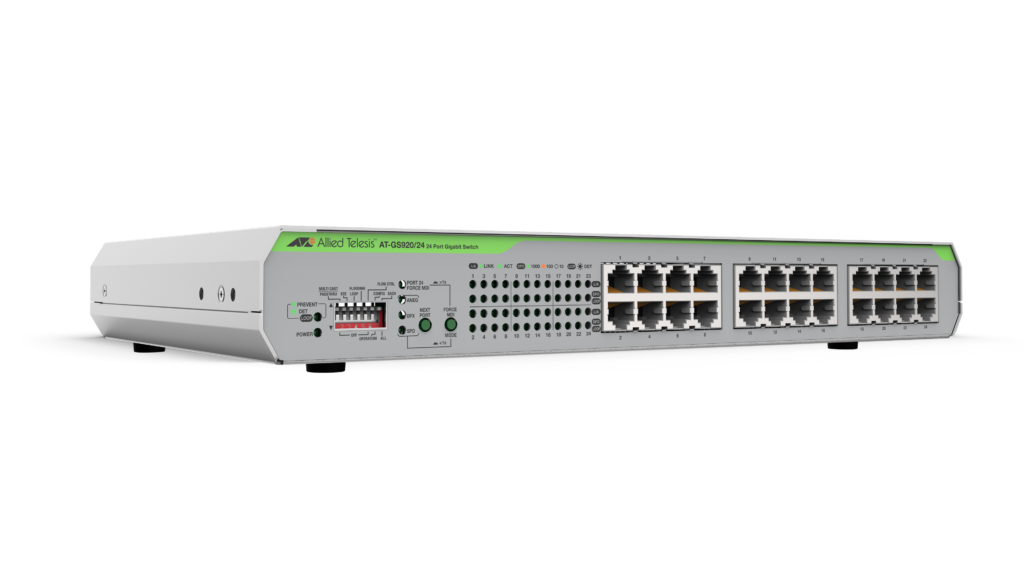

GS920/24
Unmanaged switch with 24 x 10/100/1000T ports, internal PSU and DIP switches for simple configuration.
Add to quote

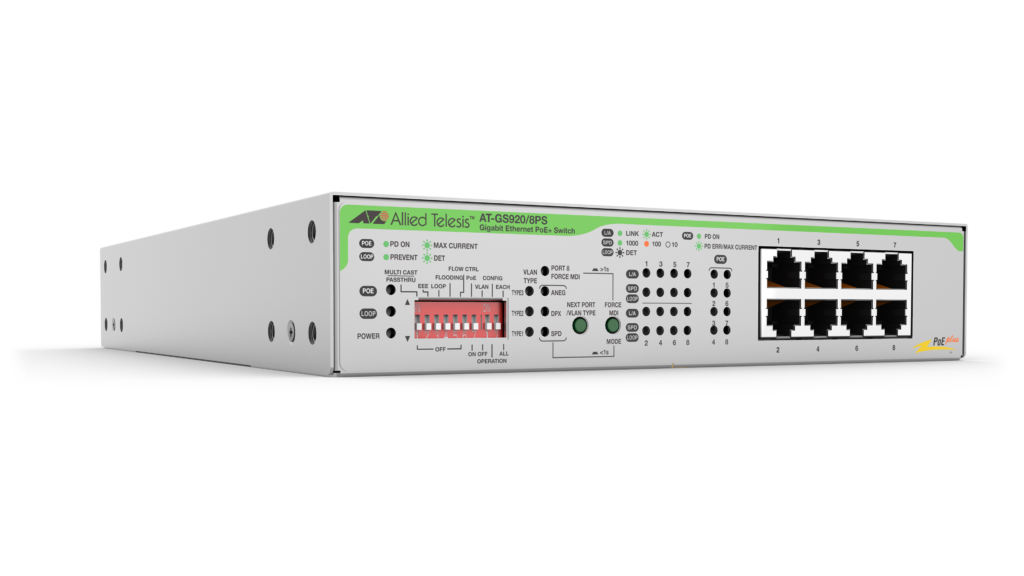

GS920/8PS
Compact 8-port 10/100/1000T POE+ unmanaged switch with DIP-switch configuration and integrated PSU.
Add to quoteAccessories
BRKT-J23
Wall mount kit for Allied Telesis switches.
RKMT-J05
Rack mount kit for Allied Telesis switches.
RKMT-J08
Allied Telesis rack mount kit for switches.
RKMT-J14
The RKMT-J14 rackmount kit to install one device in a 19-inch equipment rack
RKMT-J15
Rackmount kit to install two devices side by side in a 19-inch equipment rack
BRKT-J24
Wall mount kit for small switches.
BRKT-J22
Wall mount kit for 28 and 52 port switches.
