A cost-effective and high-performing solution that enables small businesses to connect and power devices at the network edge.
Overview
- Combine the performance of Gigabit connectivity with PoE+ for a flexible network edge solution
- Minimal power consumption for an eco-friendly environment
- The full 30 Watts of PoE+ to connect and power a variety of devices
- User-friendly, web-based management
Key Features
- 802.1x port-based, and MAC-based, network access control
- IGMP snooping (v1/v2)
- Ingress/egress rate limiting
- Port-based traffic prioritization
Certifications and Compliance
Trade Agreement Act (TAA)
TAA compliance is mandatory for US Government purchases to prove that products are manufactured only in the USA or other approved countries.
Specifications
| Product | 10/100/1000T Copper Ports | 100/1000X SFP Ports | Total Ports | PoE+ Enabled Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|
| GS950/10 V2 | 8 | 2 | 10 | – | 20Gbps | 14.88Mpps |
| GS950/10PS V2 | 8 | 2 | 10 | 8 | 20Gbps | 14.88Mpps |
| GS950/18 V2 | 16 | 2 | 18 | – | 36Gbps | 26.78Mpps |
| GS950/18PS V2 | 16 | 2 | 18 | 16 | 36Gbps | 26.78Mpps |
| GS950/28 V2 | 24 | 4 | 28 | – | 56Gbps | 41.66Mpps |
| GS950/28PS V2 | 24 | 4 | 28 | 24 | 56Gbps | 41.66Mpps |
| GS950/52 V2 | 48 | 4 | 52 | – | 104Gbps | 77.38Mpps |
| GS950/52PS V2 | 48 | 4 | 52 | 24 | 104Gbps | 77.38Mpps |
Physical
| Product | Width | Depth | Height | Weight |
|---|---|---|---|---|
| GS950/10 V2 | 280 mm (11.02 in) | 180 mm (7.09 in) | 44 mm (1.73 in) | 1.6 kg (3.53 lb) |
| GS950/10PS V2 | 330 mm (13.00 in) | 180 mm (7.09 in) | 44 mm (1.73 in) | 1.9 kg (4.19 lb) |
| GS950/18 V2 | 330 mm (13.00 in) | 220 mm (7.87 in) | 44 mm (1.73 in) | 2.2 kg (4.85 lb) |
| GS950/18PS V2 | 440 mm (17.32 in) | 250 mm (9.80 in) | 44 mm (1.73 in) | 3.7 kg (8.16 lb) |
| GS950/28 V2 | 330 mm (13.00 in) | 200 mm (7.87 in) | 44 mm (1.73 in) | 2.3 kg (5.07 lb) |
| GS950/28PS V2 | 440 mm (17.32 in) | 250 mm (9.80 in) | 44 mm (1.73 in) | 3.7 kg (8.16 lb) |
| GS950/52 V2 | 440 mm (17.32 in) | 250 mm (8.90 in) | 44 mm (1.73 in) | 3.6 kg (7.94 lb) |
| GS950/52PS V2 | 440 mm (17.32 in) | 431 mm (17.080 in) | 44 mm (1.73 in) | 6.1 kg (13.45 lb) |
Power and Noise Characteristics
| Product | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise | Full PoE+ Load Max Power Consumption | Full PoE+ Load Max Heat Dissipation | Full PoE+ Load Noise |
|---|---|---|---|---|---|---|
| GS950/10 V2 | 11W | 38.25 BTU/h | Fanless | – | – | – |
| GS950/10PS V2 | 25W | 119.43 BTU/h | Fanless | 100W | 350.692 BTU/h | Fanless |
| GS950/18 V2 | 15W | 51.90 BTU/h | Fanless | – | – | – |
| GS950/18PS V2 | 75W | 255.91 BTU/h | 41 dbA | 260W | 890.948 BTU/h | 47.1 dbA |
| GS950/28 V2 | 19W | 65.37 BTU/h | Fanless | – | – | – |
| GS950/28PS V2 | 95W | 324.15 BTU/h | 41 dbA | 270W | 919.383 BTU/h | 52 dbA |
| GS950/52 V2 | 38W | 128.80 BTU/h | 48 dbA | – | – | – |
| GS950/52PS V2 | 150W | 511.82 BTU/h | 38 dbA | 520W | 1800.853 BTU/h | 50 dbA |
Note: Noise values are dependent on the ambient temperature, not POE load. Above 25C the fan runs at full speed.
Power over Ethernet
| Product | PoE Power Budget | 7.5W PoE Sourcing Ports | 15.4W PoE Sourcing Ports | 30W PoE+ PoE Sourcing Ports |
|---|---|---|---|---|
| GS950/10PS V2 | 75W | 8 | 4 | 2 |
| GS950/18PS V2 | 185W | 16 | 12 | 6 |
| GS950/28PS V2 | 185W | 24 | 12 | 6 |
| GS950/52PS V2 | 370W | 24 | 24 | 12 |
Â
Ordering Information
Model availability can vary between regions. Please check our website to see which models are available in your region.

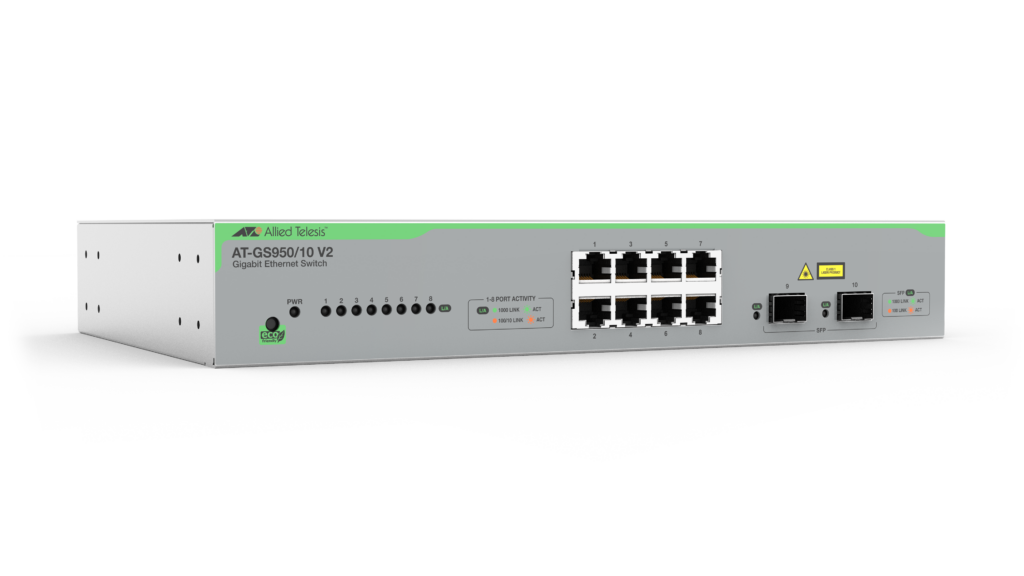

AT-GS950/10 V2-xx(1)(3)
8-port 10/100/1000T WebSmart
switch with 2 SFP ports

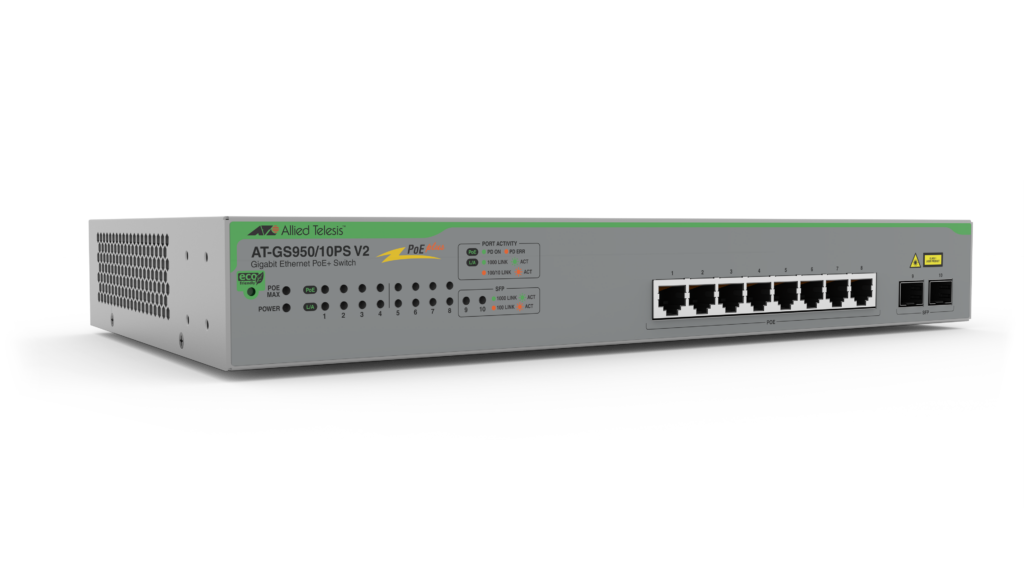

AT-GS950/10PS V2-xx(1)(3)
8-port 10/100/1000T POE (8 POE Enabled)
WebSmart switch with 2 SFP ports

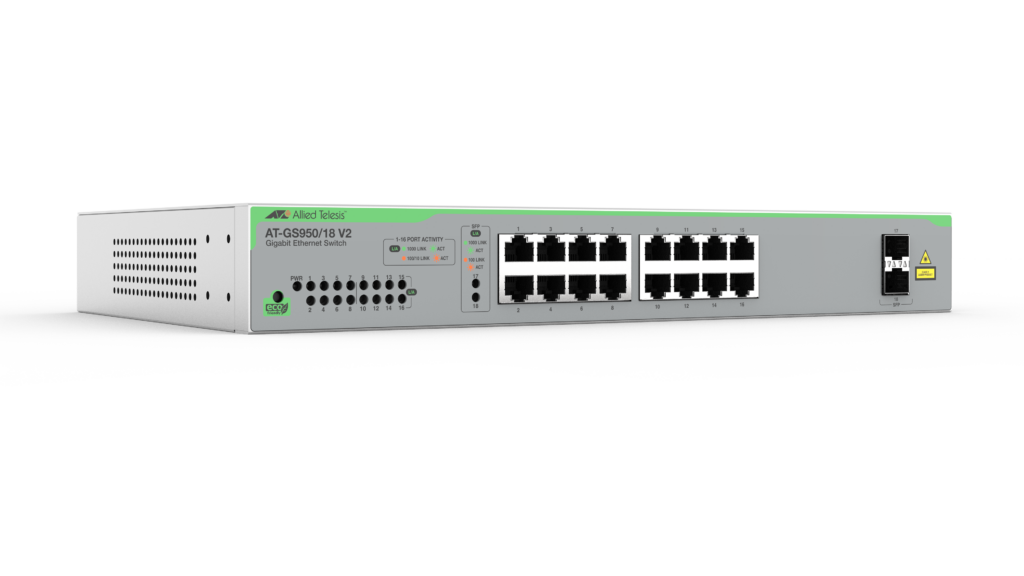

AT-GS950/18 V2-xx(1)(3)
16-port 10/100/1000T WebSmart
switch with 2 SFP ports

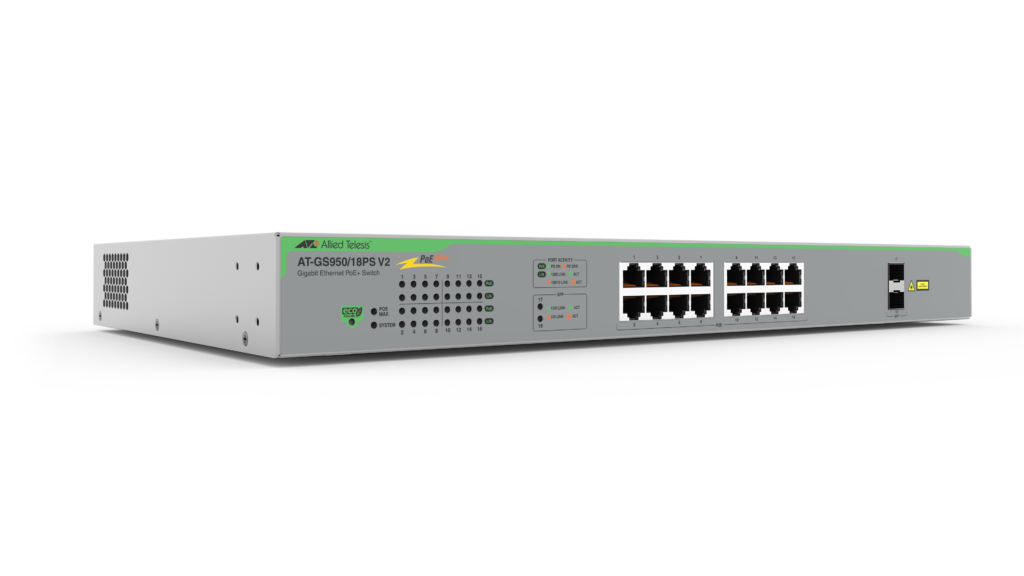

AT-GS950/18PS V2-xx(1)(3)
16-port 10/100/1000T POE (16 POE Enabled)
WebSmart switch with 2 SFP ports

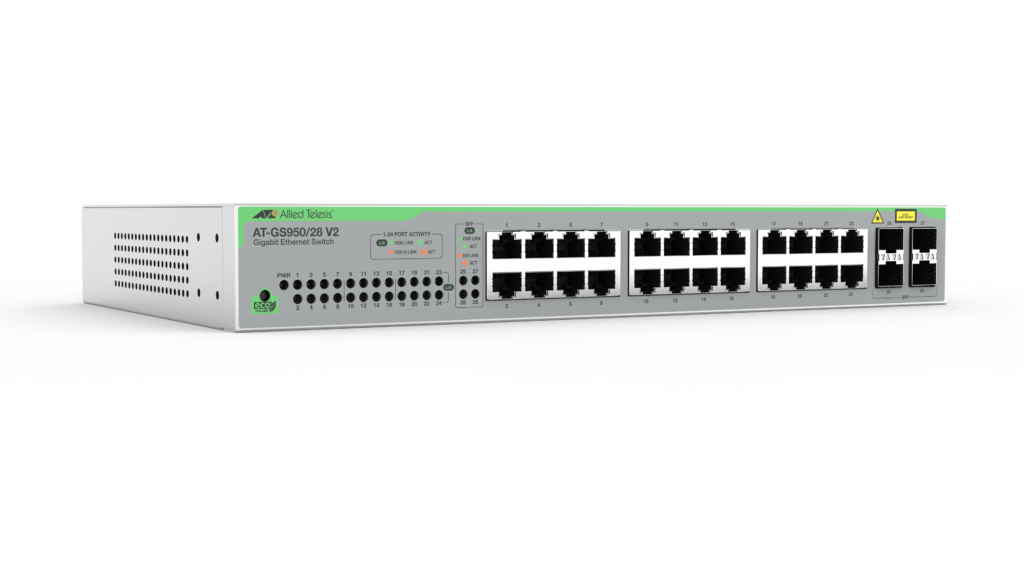

AT-GS950/28 V2-xx(1)(3)
24-port 10/100/1000T WebSmart
switch with 4 SFP ports

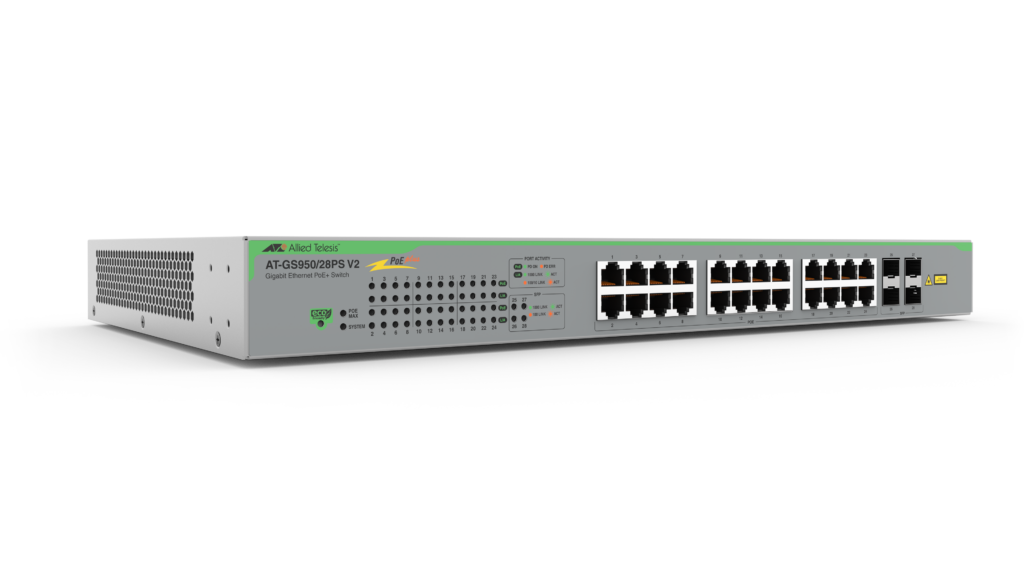

AT-GS950/28PS V2-xx(1)(3)
24-port 10/100/1000T POE (24 POE Enabled)
WebSmart switch with 4 SFP ports

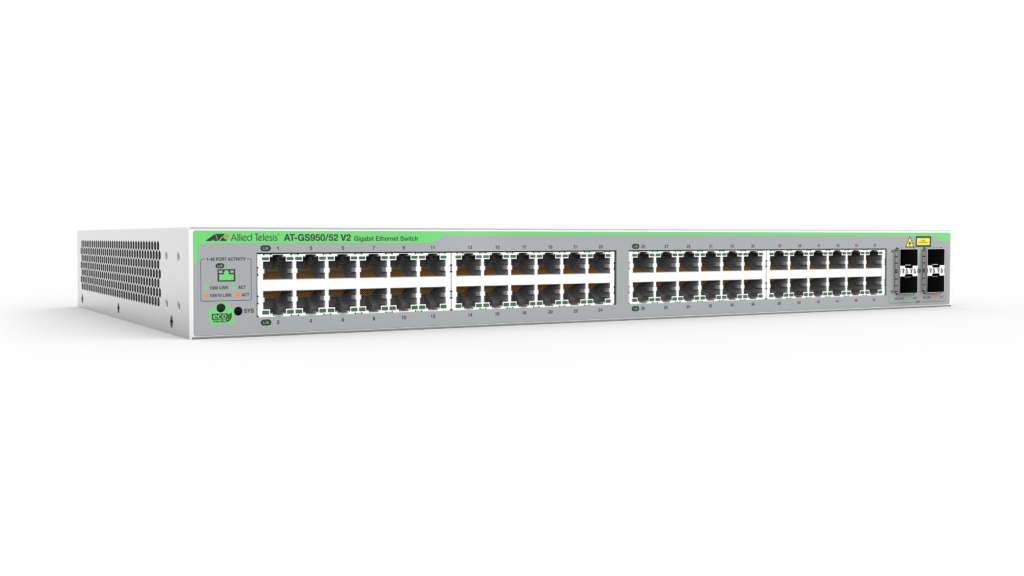

AT-GS950/52 V2-xx(2)(3)
48-port 10/100/1000T WebSmart
switch with 4 SFP ports

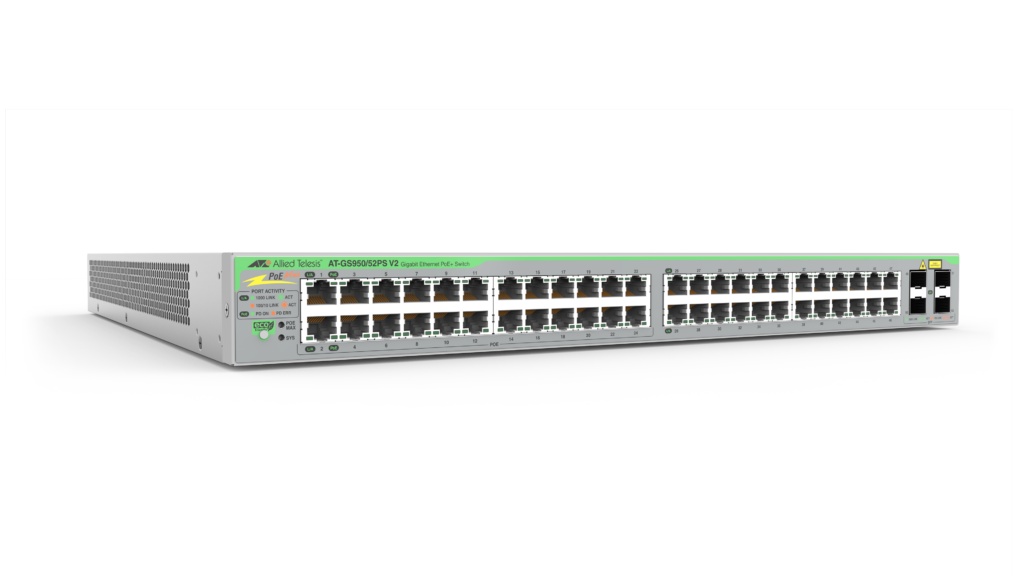

AT-GS950/52PS V2-xx(2)(3)
48-port 10/100/1000T POE (24 POE Enabled)
WebSmart switch with 4 SFP ports
AT-BRKT-J22
Wall Mount Brackets for GS950PS V2 Series
(1) Rack-mount kit is included. It can also be used for a wall-mount
(2) Rack-mount kit is included
(3) Trade Act Agreement compliant
Â
Where xx =
10 for US power cord
20 for no power cord
30 for UK power cord
40 for Australian power cord
50 for European power cord
All Models
Accessories
SPSX
1000SX (LC), multi-mode, 220-550m
SPLX10a
The SPLX10a offers a long-haul option to extend your network up to 10km.
SPFX/2
100FX (LC), multi-mode, 2km
SPBD10
1000LX (LC) single-mode BiDi, 10km
SPBD20-xx/I
1000LX (SC) Single-Mode BiDi, I-Temp, 20km
SPBD40-xx/I
1000LX (LC) single-mode BiDi, I-Temp, 40km
BRKT-J22
Wall mount kit for 28 and 52 port switches.
