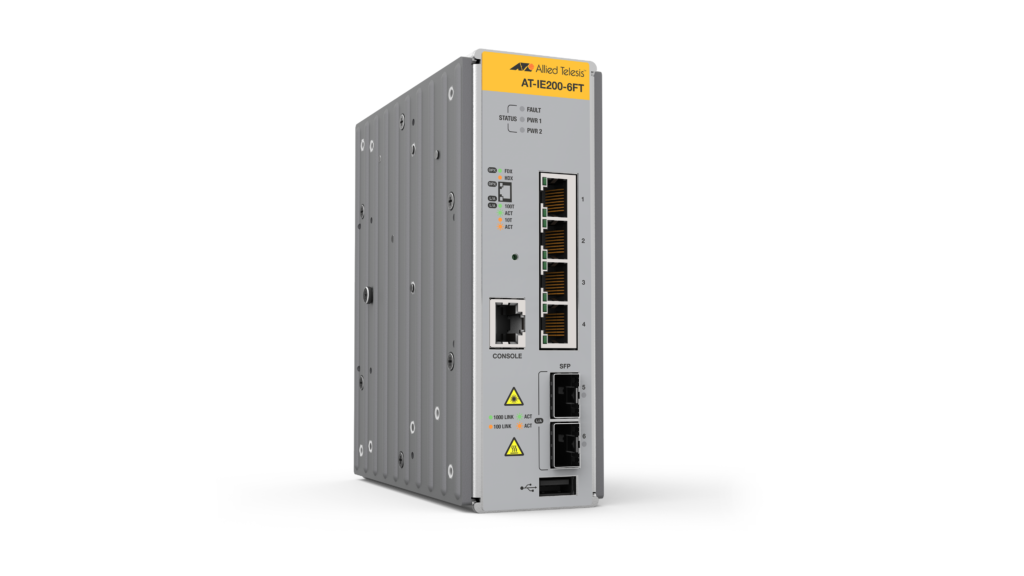

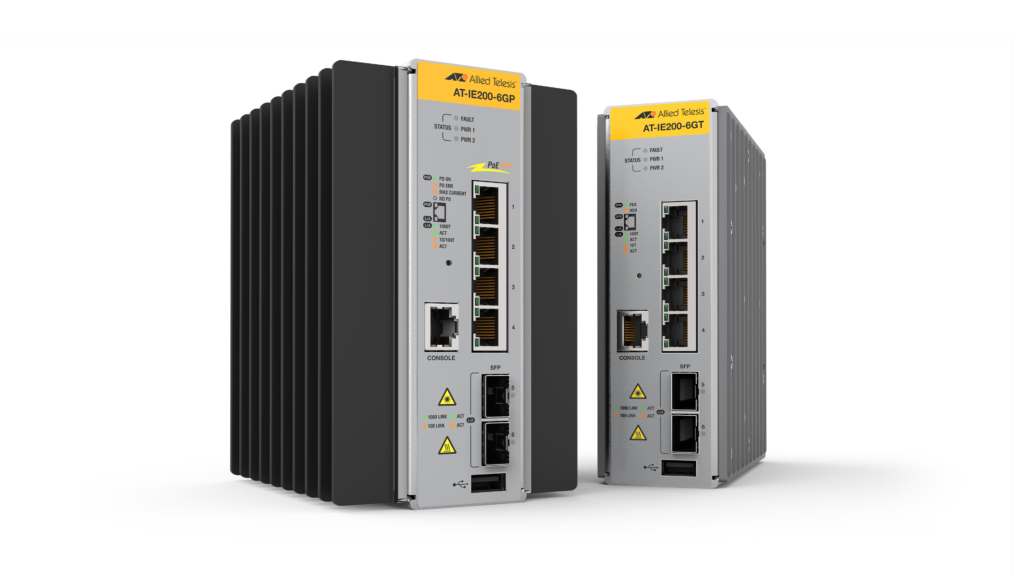

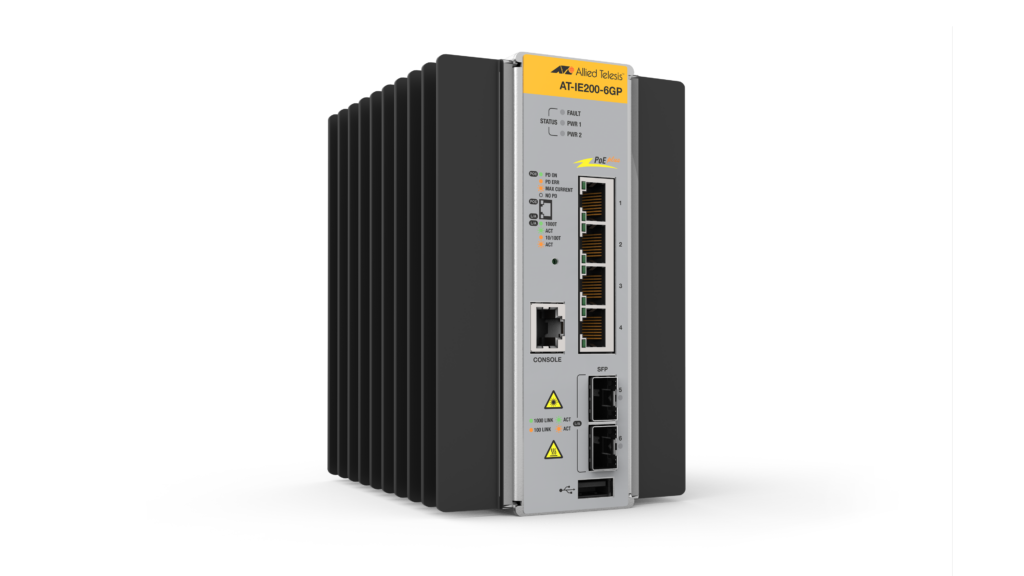

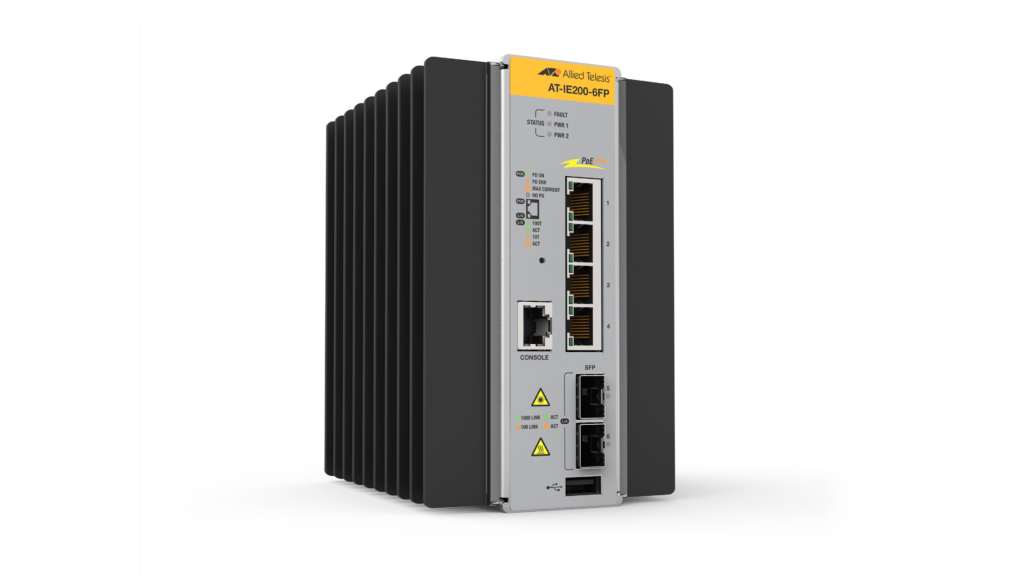

IE200 Series

Overview

An ideal option for integrating management into any network solution
Easily managed through Web GUI, SNMP, Telnet, SSH or Allied Telesis Autonomous Management Framework™ (AMF)
Operating temperature range between -40°C and 75°C—ideal for industrial and outdoor deployments
Supports both Gigabit and Fast Ethernet Small Form-factor Performance Pluggables (SFPs)
The PoE sourcing equipment allows for lower total cost of ownership

Key Features

AlliedWare Plus™ feature-rich operating system
AMF node
Ethernet Protection Switched Ring (EPSRing™) (RFC3619) to reduce network impact <50ms
IEEE 802.3at PoE+ sourcing (30W)
Internal DC/DC electrical isolation
IPv6 management for up-to-date requirements
Reliable and accurate QoS support
STP, RSTP and MSTP for better redundancy
Superior security mechanism including SSL,SSH, 802.1X, MAC, IP filtering, RADIUS, TACACS+ and VLAN for access protection
USB port for image/configuration backup, restore, and upgrade

Certifications and Compliance

IPv6 Ready

Run by the IPv6 Forum, IPv6 Ready certification demonstrates conformance to IPv6 standards and validates interoperability of IPv6 products.

Specifications

Product	10/100T (RJ-45) Copper Ports	10/100/1000T (RJ-45) Copper Ports	100/1000X SFP Ports	Switching Fabric	Forwarding Rate (64-Byte Packets)	PoE Sourcing Ports	PoE Budget

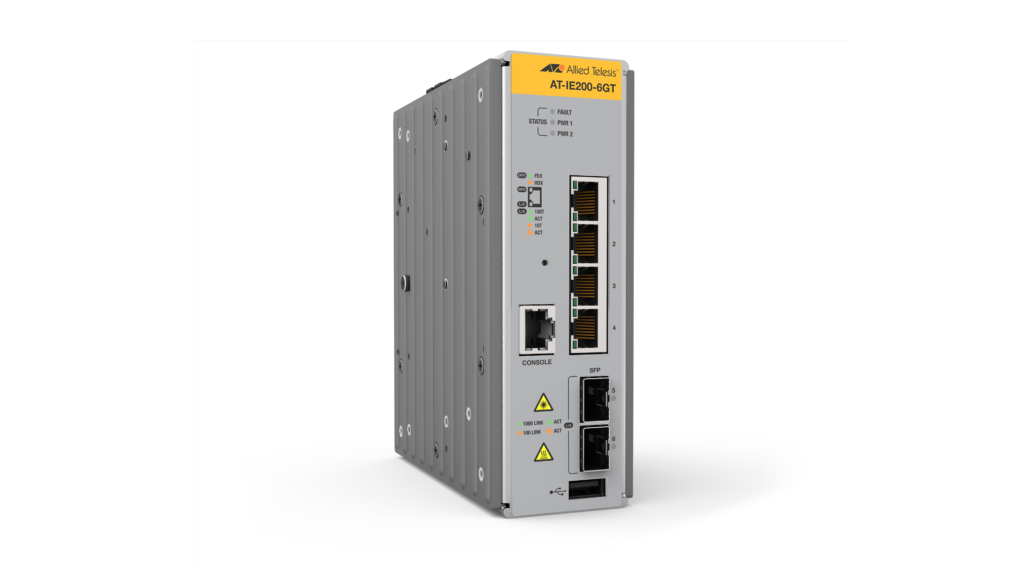

IE200-6GT	–	4	2	12.0Gbps	8.93Mpps	–	–

Physical

Product	Width x Depth x Height	Weight	Enclosure	Mounting	Protection Rate
IE200-6GT	55 x 159 x 134 mm (2.17 x 6.25 x 5.28 in)	0.9 Kg (2.0 lb)	Aluminium shell	DIN rail, wall mount	IP30

Power Characteristics

Product	Input Voltage	Cooling	No PoE Load* Max Power Consumption	No PoE Load* Max Heat Dissipation	No PoE Load* Noise
IE200-6GT	12~48V DC	Fanless	32W	109 BTU/hr	–

* The Max Power consumption at full PoE load includes PD’s consumption and margin. The cooling requirements of the switch are smaller than the power draw, because most of the load is dissipated at the PoE powered device (PD) and along the cabling.

Use these wattage and BTU ratings for facility capacity planning.

Power over Ethernet

Product	Full PoE Load Max Power Consumption	Full PoE Load Max Heat Dissipation	Full PoE Load Noise	Max PoE Power	15W Max PoE Sourcing Ports	30W PoE+ Max PoE Sourcing Ports
IE200-6GT	–	–	–	–	–	–

Ordering Information

AT-IE200-6GT-80

4 x 10/100/1000T, 2 x 100/1000X SFP,
Industrial Ethernet, Layer 2 Switch

Power Supplies

AT-DRB50-48-1

50W @48Vdc, Industrial AC/DC power supply,
DIN rail mount

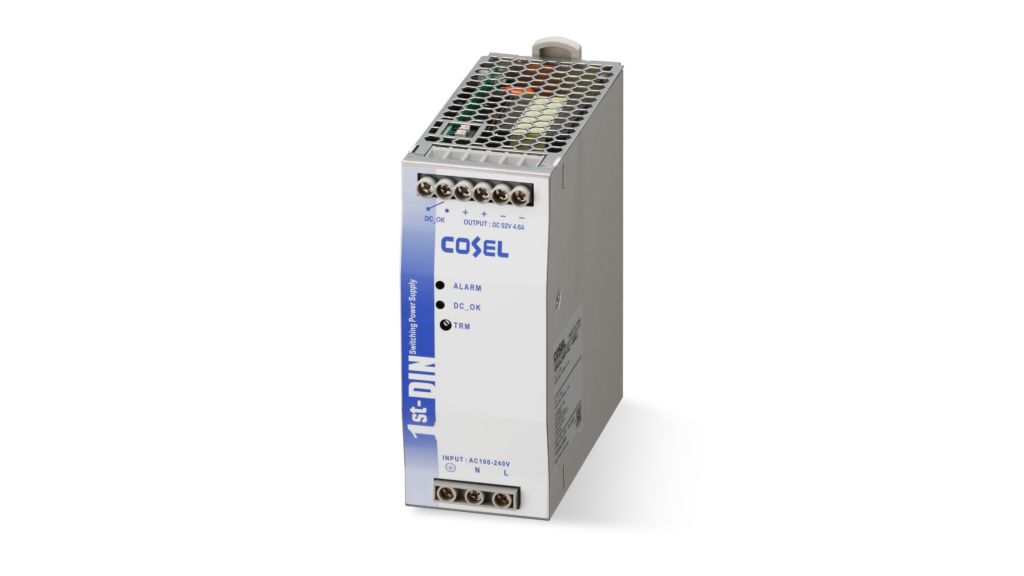

AT-IE048-240-20

240W @48Vdc, Industrial AC/DC power supply,
DIN rail mount (5 years warranty)

AT-SDR240-48

240W @48Vdc, Industrial AC/DC power supply,
DIN rail mount

The DIN rail and wall mount kits are included.

Feature Licenses

Name	Description	Includes
AT-FL-IE2-L2-01	IE200 series Layer 2 Premium license*	VLAN double tagging (QinQ) UDLD
AT-FL-IE2-8032	IE200 series license for ITU-T G.8032 and Ethernet CFM	ITU-T G.8032 Ethernet CFM
