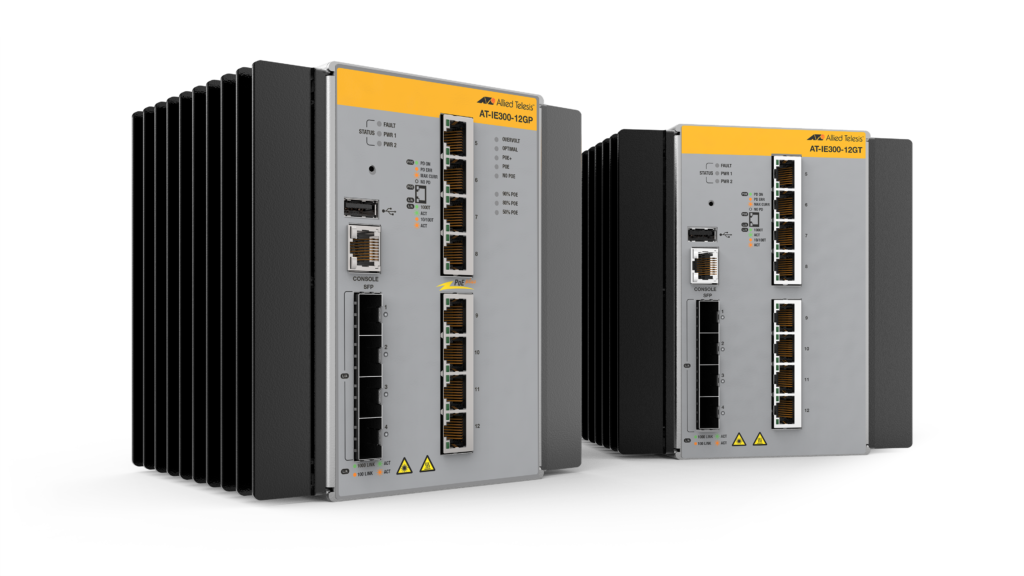

Built for enduring performance in harsh environments. This series delivers the performance and reliability demanded by industrial deployments in the Internet of Things (IoT) age.
Overview
- 802.1X
- Device management through Web GUI
- IP filtering
- MAC
- Offering high throughput
- RADIUS
- rich functionality and advanced security features
- Ruggedized to meet the latest industrial Ethernet standards for temperature
- SNMP
- SSH
- SSH or Allied Telesis Autonomous Management Framework™ Plus (AMF Plus)
- Superior security including SSL
- Support highly stable and reliable network switching
- TACACS+ and VLAN
- Telnet
- vibration and electrical noise
- with a recovery time of less than 50ms
Key Features
- ACLs for management traffic
- AlliedWare Plus™ feature-rich operating system
- and upgrade
- Continuous Power over Ethernet (CPoE) to retain PoE sourcing on hot-restart
- Ethernet Protection Switched Ring (EPSRing™)
- Ethernet Ring Protection Switching (ITU-T G.8032)
- IEEE 802.3at PoE+ sourcing (30W)
- IPv6 management for up-to-date requirements
- PoE++ power up to 60W per port
- Redundant power inputs for higher system reliability
- restore
- Static unicast and multicast routes for IPv4
- USB port for image/configuration backup
Certifications and Compliance
IPv6 Ready
Run by the IPv6 Forum, IPv6 Ready certification demonstrates conformance to IPv6 standards and validates interoperability of IPv6 products.
OpenFlow Conformance
OpenFlow Conformance is the highest assurance from the Open Networking Foundation that validates products conform to the OpenFlow specification.
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 100/1000X SFP Ports | Total Ports | PoE Enabled Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|---|
| IE300-12GP | 8 | 4 | 12 | 8 | 24Gbps | 17.8Mpps |
| IE300-12GT | 8 | 4 | 12 | – | 24Gbps | 17.8Mpps |
Physical
| Product | Width x Depth x Height | Weight | Enclosure | Mounting | Protection Rate |
|---|---|---|---|---|---|
| IE300-12GP | 146 x 127 x 152 mm (5.75 x 5.00 x 6.00 in) |
2.0 kg (4.5 lb) | Aluminium shell | DIN rail, wall mount | IP30 |
| IE300-12GT | 146 x 127 x 152 mm (5.75 x 5.00 x 6.00 in) |
2.0 kg (4.4 lb) | Aluminium shell | DIN rail, wall mount | IP30 |
Power Characteristics
| Product | Input Voltage | Cooling | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise |
|---|---|---|---|---|---|
| IE300-12GP | 48V DC *, 53.5V DC ** | Fanless | 30W | 102 BTU/hr | – |
| IE300-12GT | 12~55V DC | Fanless | 30W | 102 BTU/hr | – |
* sourcing IEEE 802.3at Type 1 (PoE)
** sourcing IEEE 802.3at Type 2 (PoE+, Hi-PoE)
Power over Ethernet
| Product | Full PoE Load* Max Power Consumption | Full PoE Load* Max Heat Dissipation | Full PoE Load* Noise | Max PoE Power | 15W Max PoE Sourcing Ports | 30W PoE+ Max PoE Sourcing Ports | 60W Hi-PoE Max PoE Sourcing Ports |
|---|---|---|---|---|---|---|---|
| IE300-12GP | 320W | 147 BTU/hr | – | 240W | 8 | 8 | 4 |
| IE300-12GT | – | – | – | – | – | – | – |
* The Max Power consumption at full PoE load includes PD’s consumption and margin. The cooling requirements of the switch are smaller than the power draw, because most of the load is dissipated at the PoE powered device (PD) and along the cabling.
Use these wattage and BTU ratings for facility capacity planning.
Ordering Information
The DIN rail and wall mount kits are included.
AT-IE300-12GP-80
8x 10/100/1000T, 4x 100/1000X SFP,
Industrial Ethernet, Layer 3 Switch, Hi-PoE Support
AT-IE300-12GT-80
8x 10/100/1000T, 4x 100/1000X SFP,
Industrial Ethernet, Layer 3 Switch
Feature Licenses
| Name | Description | Includes |
|---|---|---|
| AT-FL-IE3-G8032 | IE300 series license for ITU-T G.8032 and Ethernet CFM | ITU-T G.8032 Ethernet CFM |
| AT-FL-IE3-L2-01 | IE300 Series Layer 2 Premium license | EPSR Master VLAN Translation VLAN double tagging (Q-in-Q) UDLD |
| AT-FL-IE3-L3-01 | IE300 Series Layer 3 Premium license | OSPF (256 routes) OSPFv3 (256 routes) BGP4 (256 routes) BGP4+ for IPv6 (256 routes) PIM-SM, DM and SSM PIMv6-SM and SSM RIP RIPng VRRP and VRRPv3 |
| AT-FL-IE3-MODB | IE300 Series Modbus/TCP license | Modbus/TCP |
| AT-FL-IE3-OF13-1YR | OpenFlow license | OpenFlow v1.3 for 1 year |
| AT-FL-IE3-OF13-5YR | OpenFlow license | OpenFlow v1.3 for 5 years |
All Models
Some models are End-of-Sale. Click here for more information

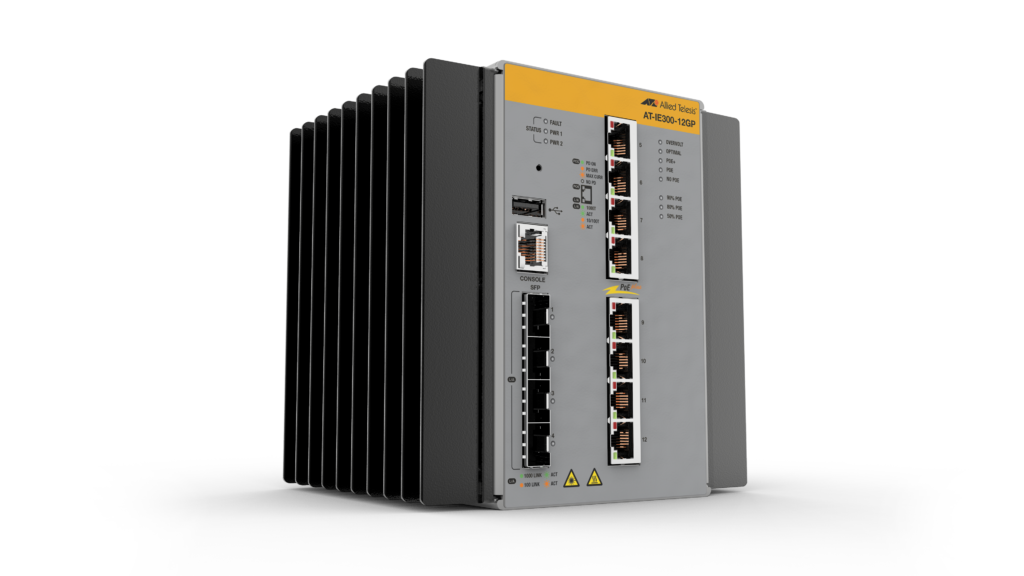

IE300-12GP
8x 10/100/1000T, 4x 100/1000X SFP, Industrial Ethernet, Layer 3 Switch with PoE++
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
15 Nov 2022
15 Nov 2022
15 Nov 2022
End of Software Support
15 Nov 2024
15 Nov 2024
15 Nov 2024
End of Life
15 Nov 2027
15 Nov 2027
15 Nov 2027
Alternate Products

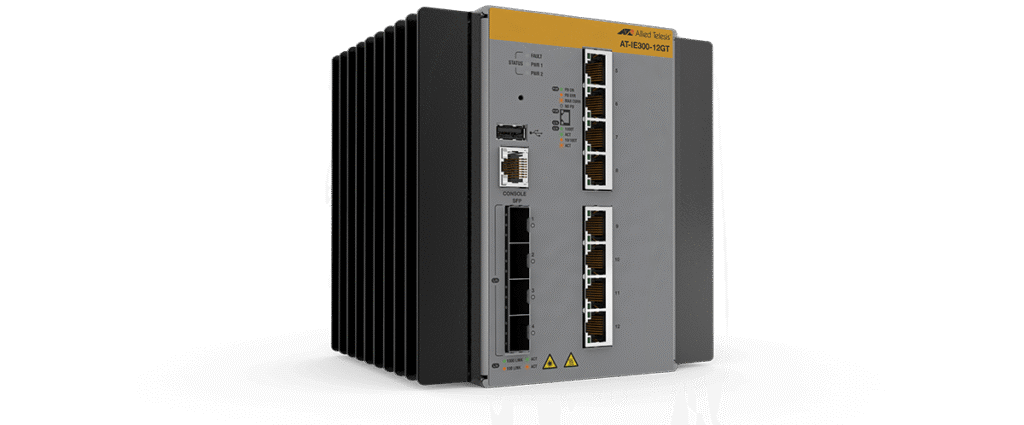

IE300-12GT
8x 10/100/1000T, 4x 100/1000X SFP, Industrial Ethernet, advanced Layer 3 Switch
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
31 May 2020
31 May 2020
31 May 2020
End of Software Support
31 May 2022
31 May 2022
31 May 2022
End of Life
31 May 2025
31 May 2025
31 May 2025
Alternate Products
