IE360 Series

Industrial Ethernet Layer 3 Gigabit Switches

The IE360 Series Industrial Ethernet Layer 3 switches provide secure data transfer to support critical infrastructure in harsh environments, such as industrial automation, marine, oil and gas, transportation, and more. The Power over Ethernet (PoE++) model enables connecting and powering key endpoints and IoT devices for seamless and efficient infrastructure operation.

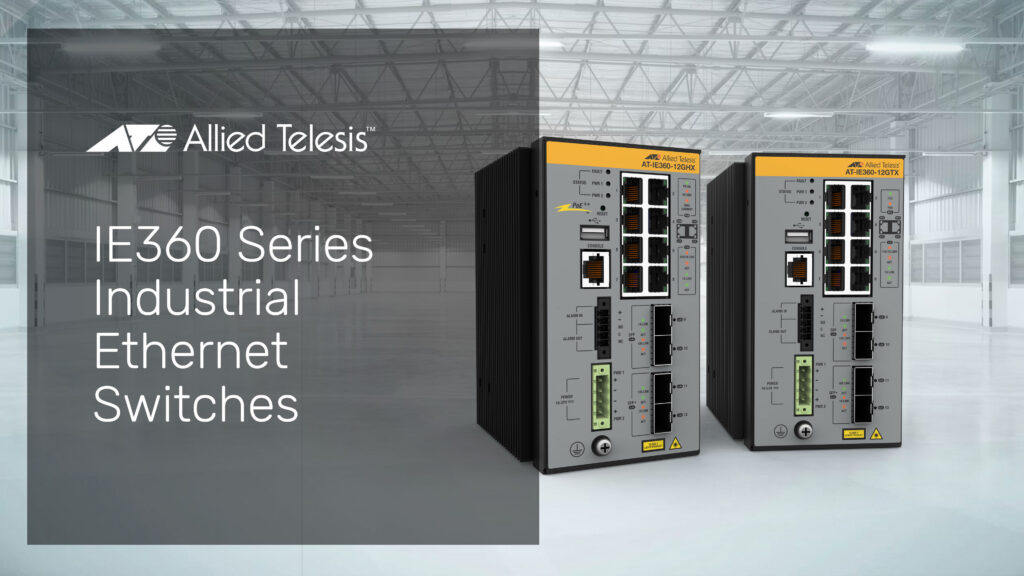

IE360 group of two 12-port Industrial Switches

Overview

  • Centralized management, visibility, and automation of the entire network using Vista Managerâ„¢ and Autonomous Management Frameworkâ„¢ Plus
  • Ensure smooth transportation operation with live signalling, adaptive traffic control, preventative risk management, and increased safety
  • Flexible deployment options with 8 x 1G copper ports (with or without PoE++) along with 2 x 1G and 2 x 10G fiber uplink ports
  • Hardened industrial-grade switches that operate flawlessly in harsh environments, withstanding electromagnetic noise, wide temperature, humidity, vibration, and more
  • Improve manufacturing productivity with converged IT and OT systems, and enable real-time analysis and decision making for immediate issue resolution
  • Optimize utility, power, and service provider operation with seamless access to critical control systems, process data, and status monitoring
  • Secure essential services infrastructure and data against sniffing or exploitation with MACsec encryption on the 1/10G uplink ports

Key Features

  • 1GbE PoE++ copper ports with 100M/1/10GbE fiber uplinks
  • Active Fiber Monitoringâ„¢ (AFM) detects and prevents tampering of fiber uplinks
  • Alarm monitoring and triggers for proactive administration
  • AlliedWare Plusâ„¢ feature-rich operating system
  • Continuous PoE maximizes endpoint uptime and connectivity
  • Electromagnetic compatibility for use in power substations
  • Extended operating temperature of -40°C to 75°C for harsh environments
  • Fanless design for increased reliability and dust resistance
  • Integrated voltage booster ensures PoE sourcing at the rated value regardless the fluctuation on input voltage
  • MACsec encryption @256bits on the 1/10G uplink ports
  • MODBUS/TCP for industrial automation and supervision
  • MRP, EPSRingâ„¢, and G.8032 ERPS for resilient distribution rings
  • NETCONF/RESTCONF and OpenFlow v1.3 for network automation and orchestration
  • PoE++ supplies up to 95W per port (IE360-12GHX only)
  • Precise time synchronization (IEEE 1588 PTP – Transparent Clock)
  • Redundant power inputs maximize uptime and resiliency
  • Static and dynamic routing (ECMP, OSPF, RIP, Static and BGP)

Specifications

Product 10/100/1000T (RJ-45) Copper Ports 100/1000X SFP Ports 1/10G SFP+ Ports Total Ports PoE Enabled Ports Switching Fabric Forwarding Rate
IE360-12GHX 8 2 2 w/ MACsec 12 8 60Gbps 44.6Mpps
IE360-12GTX 8 2 2 w/ MACsec 12 – 60Gbps 44.6Mpps

Physical

Product Width x Depth x Height Weight Enclosure Mounting Protection Rate
IE360-12GHX 91 x 158 x 153 mm
(3.58 x 6.23 x 6.02 in)		 DIN rail: 2.2 kg (4.88 lbs)
Wall mount: 2.1 kg (4.64 lbs)		 Aluminium/Stainless Steel
Sheet Metal shell		 DIN rail, wall mount IP30
IE360-12GTX 91 x 158 x 153 mm
(3.58 x 6.23 x 6.02 in)		 DIN rail: 2.1 kg (4.64 lbs)
Wall mount: 2.06 kg (4.54 lbs)		 Aluminium/Stainless Steel
Sheet Metal shell		 DIN rail, wall mount IP30

Power Characteristics

Product Input Voltage Cooling No PoE Load Max Power Consumption No PoE Load Max Heat Dissipation No PoE Load Noise Full PoE Load(1) Max Power Consumption Full PoE Load(1) Max Heat Dissipation Full PoE Load(1) Noise
IE360-12GHX 18~57V DC(2) Fanless 29.9W 102.0 BTU/hr – 406.5W 158.7 BTU/hr –
IE360-12GTX 18~57V DC Fanless 25.0W 85.3 BTU/hr – – – –

(1) The Max Power consumption at full PoE load includes the powered device’s consumption and margin. The cooling requirements of the switch are smaller than the power draw, because most of the load is dissipated at the PoE powered device and along the cabling. Use these wattage and BTU ratings for facility capacity planning.

(2) Note: PoE sourcing requires the input voltage ≥ 36V DC

Power over Ethernet Sourcing Characteristics

Product Enabled PoE Ports PoE Max PoE Power Budget(3) Max PoE Sourcing Ports PoE (15W) Max PoE Sourcing Ports PoE+ (30W) Max PoE Sourcing Ports PoE++ (60W) Max PoE Sourcing Ports PoE++ (95W)
IE360-12GHX 8 360W 8 8 6 3
IE360-12GTX – – – – – –

(3) The PoE power budget is shared among all ports; we recommend configuring dynamic PoE power allocation to optimize the power distribution.

Latency (microseconds)

Product 100Mbps Port Speed 1Gbps Port Speed 10Gbps Port Speed
IE360-12GHX 10.98µs 2.44µs 1.62µs
IE360-12GTX 11.02µs 2.22µs 1.62µs

Ordering Information

The DIN rail and wall mount kits are included.
The management serial console cable is NOT included.

AT-IE360-12GHX-xx(1)

8x 10/100/1000T, 2x 100/1000X SFP
2x 1G/10G SFP+
Industrial Ethernet, Layer 3 Switch
PoE++ Support

AT-IE360-12GTX-xx(1)

8x 10/100/1000T, 2x 100/1000X SFP
2x 1G/10G SFP+
Industrial Ethernet, Layer 3 Switch

(1) Trade Act Agreement compliant

Where xx =
80 standard Country of Origin
980 TAA compliant Country of Origin

Power Supplies

AT-IE048-120-20

120W @48Vdc, Industrial AC/DC power supply,
DIN rail mount (5 years warranty)

AT-IE048-240-20

240W @48Vdc, Industrial AC/DC power supply,
DIN rail mount (5 years warranty)

AT-IE048-480-20

480W @48Vdc, Industrial AC/DC power supply,
DIN rail mount (5 years warranty)

AT-SDR120-48

120W @48Vdc, Industrial AC/DC power supply,
DIN rail mount

AT-SDR240-48

240W @48Vdc, Industrial AC/DC power supply,
DIN rail mount

AT-SDR480-48

480W @48Vdc, Industrial AC/DC power supply,
DIN rail mount

Feature Licenses

Name Description Includes
AT-IE360-FL01 IE360 Series Premium license BGP, BGP+ (256 routes)
OSPF (256 routes)
OSPFv3 (256 routes)
PIM-SM, DM and SSM (256 routes)
PIMv6-SM and SSM (256 routes)
RIP (256 routes)
RIPng (256 routes)

All Models

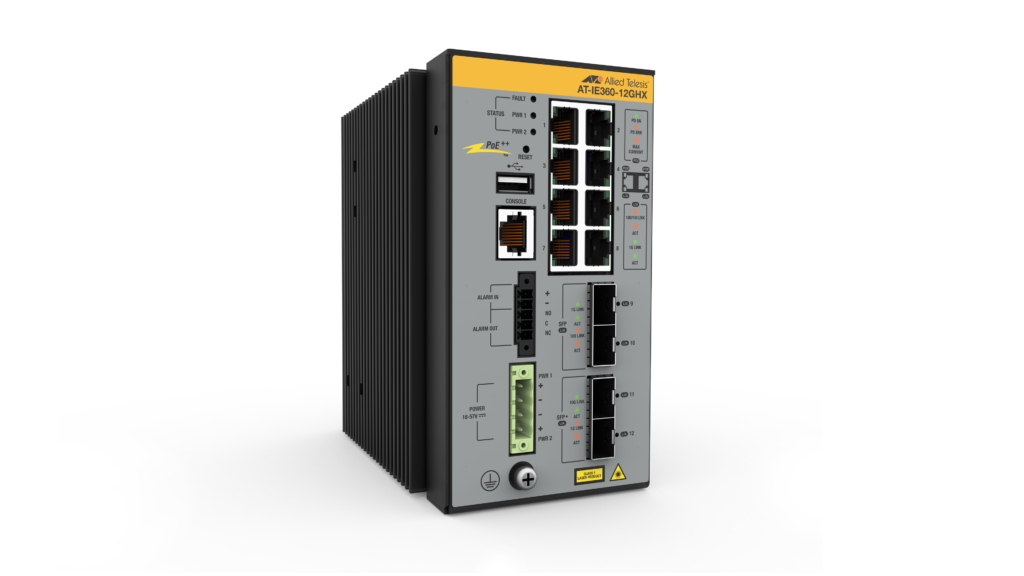

IE360-12GHX switch

IE360-12GHX

8 x 10/100/1000T PoE++, 2 x 100/1000X SFP, and 2 x 1G/10G SFP+ ports
