Ideal for core or distribution switches for industrial applications, easily connect devices like CCTV cameras, industrial automation systems and building management systems in even the harshest environment.
Overview
- A 24-port model with four additional 1/10 Gigabit uplink ports
- Offers a full range of security and resiliency features
- Offers dual built-in power supplies and near-hitless online stack reconfiguration
- Stackable and future-proof
- with superior flexibility
Key Features
- -40°C to 75°C (-40°F to 167°F) operating temperature range
- 40Gbps of stacking bandwidth
- Access Control Lists (ACLs) based on Layer 3 and 4 headers
- and mixed scheduling
- Eight priority queues with a hierarchy of high-priority queues for real-time traffic
- for each switch port
- Front panel seven-segment LED provides at-a-glance status and fault information
- Modular AlliedWare® Plus operating system
Certifications and Compliance
IPv6 Ready
Run by the IPv6 Forum, IPv6 Ready certification demonstrates conformance to IPv6 standards and validates interoperability of IPv6 products.
OpenFlow Conformance
OpenFlow Conformance is the highest assurance from the Open Networking Foundation that validates products conform to the OpenFlow specification.
Specifications
| Product | 10/100/1000T (RJ-45) Copper Ports | 100/1000X SFP Ports | 1/10 Gigabit SFP+ Ports | 10 Gigabit Stacking Ports | Switching Fabric | Forwarding Rate (64-Byte Packets) | Stacking Bandwidth |
|---|---|---|---|---|---|---|---|
| IE510-28GSX | – | 24 | 4 (2 if stacked) | 2* | 128Gbps | 95.2Mpps | 40Gbps |
* Stacking ports can be configured as additional 1G/10G Ethernet ports when unit is not stacked
Physical
| Product | Width x Depth x Height | Weight | Enclosure | Mounting | Protection Rate |
|---|---|---|---|---|---|
| IE510-28GSX-80 | 440 x 300 x 44 mm (17.32 x 11.80 x 1.73 in) |
4.8 Kg (10.58 lb) | Metal shell | Rack-mount | IP30 |
Power Characteristics
| Product | Input Voltage | Cooling | No PoE Load Max Power Consumption | No PoE Load Max Heat Dissipation | No PoE Load Noise |
|---|---|---|---|---|---|
| IE510-28GSX-80 | ±48V DC, ±60V DC * |
Fan | 74W ** | 252 BTU/h ** | 45 dBA |
* auto-ranging
** including SFP transceivers’ consumption and margin
Noise: tested to ISO7779; front bystander position
Ordering Information
AT-IE510-28GSX-80
24 x 100/1000X SFP, 4x 1/10G SFP+
Industrial Ethernet, Stackable Layer 3 Switch
Power Supplies
AT-IE048-120-20
120W @48Vdc, Industrial AC/DC power supply,
DIN rail mount (5 years warranty)
AT-IE048-240-20
240W @48Vdc, Industrial AC/DC power supply,
DIN rail mount (5 years warranty)
AT-SDR120-48
120W @48Vdc, Industrial AC/DC power supply,
DIN rail mount
AT-SDR240-48
240W @48Vdc, Industrial AC/DC power supply,
DIN rail mount
Feature Licenses
| Name | Description | Includes |
|---|---|---|
| AT-FL-IE5-L2-01 | IE510-28GSX Layer-2 Premium license | EPSR Master VLAN Translation VLAN double tagging (Q-in-Q) UDLD |
| AT-FL-IE5-L3-01 | IE510-28GSX Layer-3 Premium license | OSPF OSPFv3 PIM-SM, DM and SSM PIMv6-SM and SSM RIP RIPng VRRP |
| AT-FL-IE5-G8032 | IE510-28GSX license for ITU-T G.8032 | ITU-T G.8032 Ethernet CFM |
| AT-FL-IE5-MRP | MRP license | Media Redundancy Protocol |
| AT-FL-IE5-OF13-1YR | OpenFlow license | OpenFlow v1.3 for 1 year |
| AT-FL-IE5-OF13-5YR | OpenFlow license | OpenFlow v1.3 for 5 years |
| AT-FL-IE5-MODB | Modbus license | Modbus for industrial applications |
Â
All Models
Some models are End-of-Sale. Click here for more information

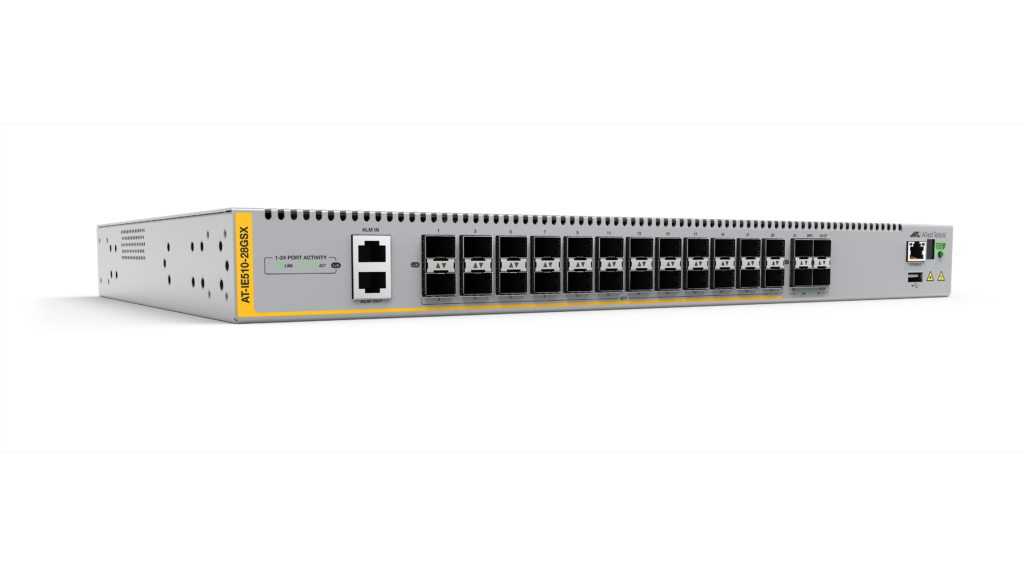

IE510-28GSX
24 x 100/1000X fiber access ports and 4 x 1G/10G SFP+ uplink ports
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
27 Feb 2026
27 Feb 2026
27 Feb 2026
End of Software Support
27 Feb 2028
27 Feb 2028
27 Feb 2028
End of Life
27 Feb 2031
27 Feb 2031
27 Feb 2031
Alternate Products
Accessories
SPTX
10/100/1000T (RJ-45), 100m
SPSX
1000SX (LC), multi-mode, 220-550m
SPEX
1000SX (LC) Multi-Mode, 2km
SPBD10
1000LX (LC) single-mode BiDi, 10km
SPBD20-xx/I
1000LX (SC) Single-Mode BiDi, I-Temp, 20km
SPLX40
1000EX (LC), single-mode, 40km
SPFX/2
100FX (LC), multi-mode, 2km
SP10SR
10G (LC), multi-mode, 300m
SP10SR/I
10G (LC), multi-mode, I-Temp, 300m
SP10ER40a/I
10G (LC) single-mode, I-Temp, 40km
SP10ZR80/I
10G (LC) single-mode, 80km
SP10TW1
SFP+ Twinax direct attach cable, 1m in length.
