Mini media converters offer a smaller size and smaller carbon footprint to help the environment and save space in the office. The Allied Telesis MMC10G Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC10G Series delivers all the power and functionality of standard size media converters.
Key Features
- 10KB Jumbo packets
- 12VDC power supply
- Link, Speed and Activity LEDs
- Locking power supply jack to prevent accidental power disconnects
- Low latency
- MissingLinkâ„¢ support
- SFP+ and RJ45 options available
- Trade Agreement Act (TAA) Compliant
- Transparent to IEEE 802.1Q packets
- Wall-mountable using MMCWLMT kit
Specifications
| Module | Media Conversion | Width x Depth x Height | Weight |
|---|---|---|---|
| MMC10GT/SP-960 | 10GT to SFP+ | 5.6 x 10.16 x 2.18 cm (2.20 x 4.00 x 0.85 in) |
0.17 kg (0.37 lb) |
| MMC10GSP/SP-960 | SFP+ to SFP+ | 5.6 x 10.16 x 2.18 cm (2.20 x 4.00 x 0.85 in) |
0.17 kg (0.37 lb) |
Â
Ordering Information
AT-MMC10GT/SP-960
10GT to SFP+ Mini Media Converter, Universal PSU,
TAA compliant

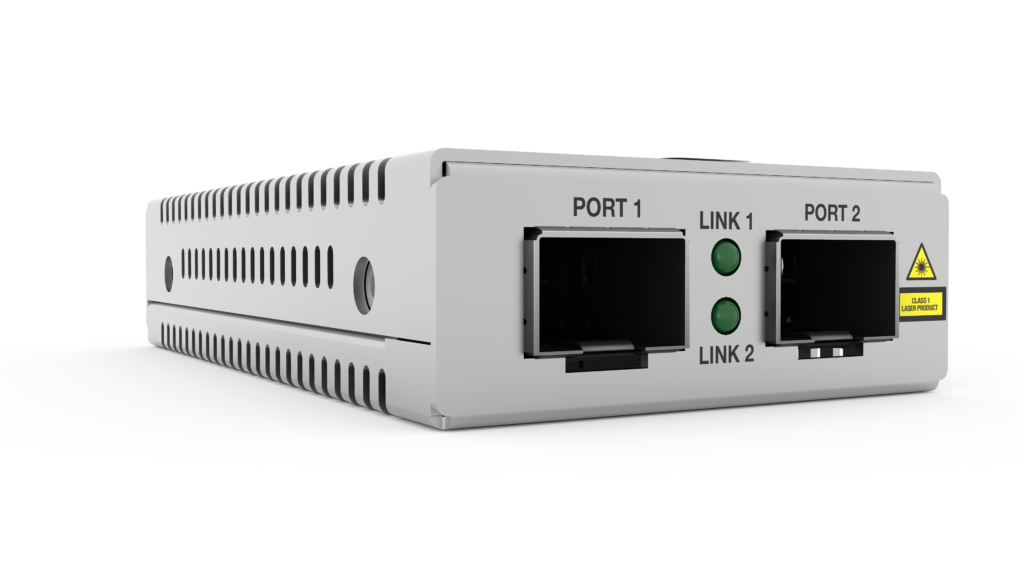

AT-MMC10GSP/SP-960
SFP+ to SFP+ Mini Media Converter,
Universal PSU, TAA compliant
AT-MMCR18
18-slot chassis for MMC Series media converters*
* Refer to the table above for the number of units in a chassis

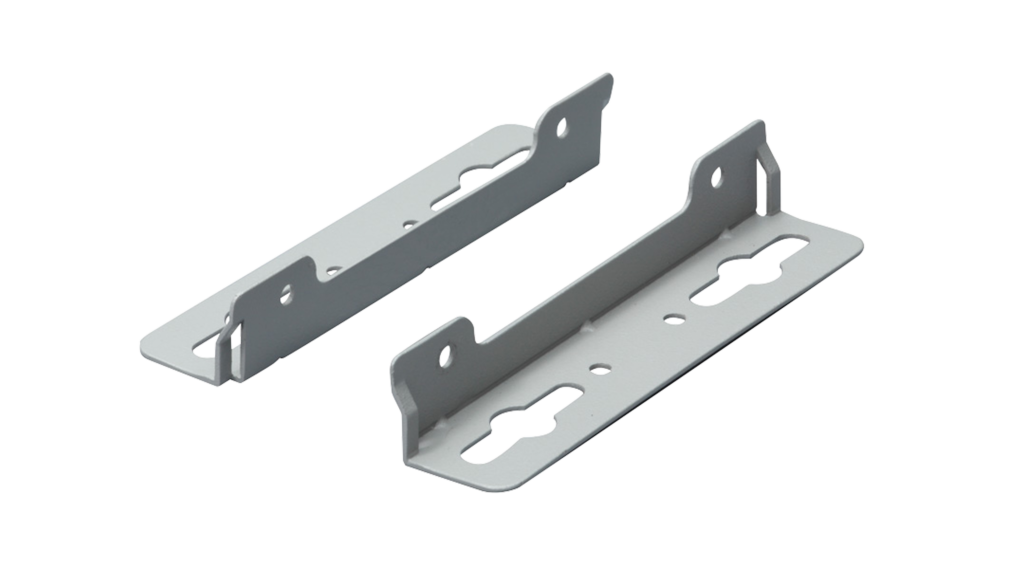

AT-MMCWLMT-005
Wall mount for MMC Series media converters (5 pack)
AT-MMCTRAY6
1RU rack-mount tray for up to 6 MMC Series
media converters
All Models
Accessories

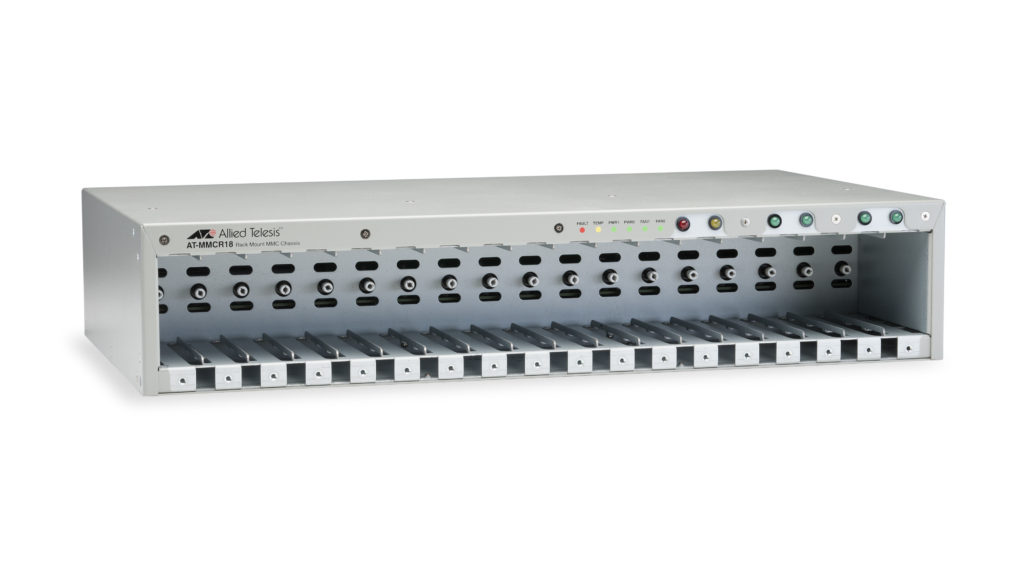

MMCR18
Power distribution chassis for up to 18 unmanaged media converters.

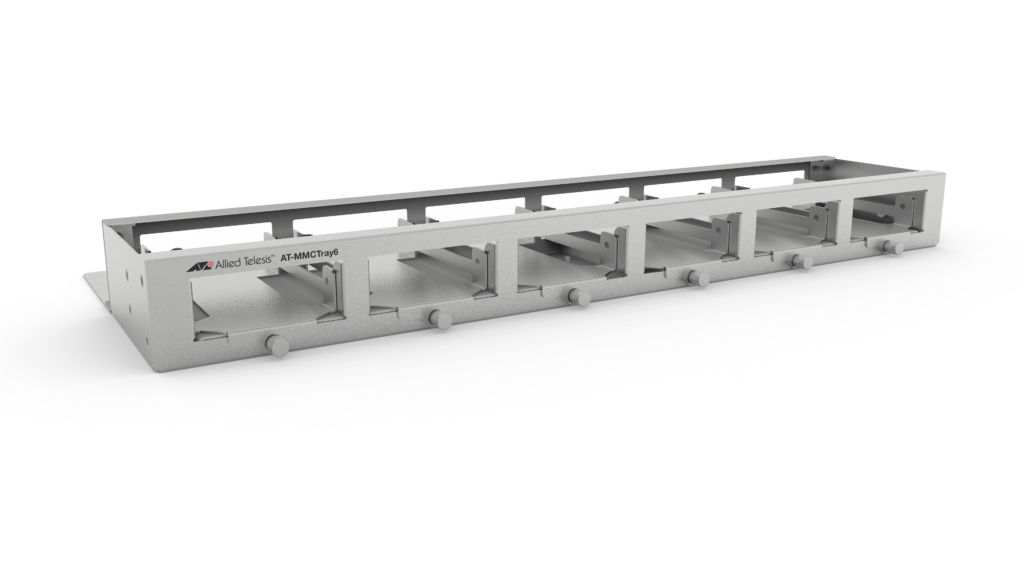

MMCTRAY6
19-inch rack-mount chassis for up to 6 unmanaged media converters
SP10SR
10G (LC), multi-mode, 300m
SP10SR/I
10G (LC), multi-mode, I-Temp, 300m
SP10ER40a/I
10G (LC) single-mode, I-Temp, 40km
SP10ZR80/I
10G (LC) single-mode, 80km
SP10TW1
SFP+ Twinax direct attach cable, 1m in length.
SP10TW3
10G Twinax DAC Cable (3m)
SP10TW7
10G Twinax DAC Cable (7m)
SPSX
1000SX (LC), multi-mode, 220-550m
SP10TM
10/100/1G/2.5G/5G/10G, 30m/100m
MMCWLMT-005
Wall mount for MMC Series media converters (5 pack)
Documentation
Datasheet: MMC10G Series
Product information for MMC10G Series - MMC10GT/SP and MMC10GSP.
Installation Guide: MMC10G Series Layer 1 Mini Media Converters
This guide contains the hardware installation instructions for the MMC10G Series Mini Media Converters.
