SE240 Series

Multi-Gigabit Edge Switches

Allied Telesis CentreCOM SE240 Series Layer 2+ multi-gigabit switches have 10 gigabit uplinks, a rich feature-set, and a compact design – providing great value for small to medium business networks. The Power over Ethernet models combine power delivery of up to 90 watts to next-generation endpoints, with high-speed throughput, to fully support modern applications.

Request a quote View Datasheet

Overview

Build a high-performing network access solution with multi-gigabit speeds of 10M/100M/1/2.5/5G on all edge ports to connect any device, old or new.
Connect and power Wi-Fi 6 APs, security cameras, IoT sensors, and other high-power devices with up to 90 Watts of PoE++ per port.
Prevent eavesdropping of sensitive data on fiber links with Active Fiber Monitoring
Reduce costs and automate network and device management when deployed as an Autonomous Management Framework™ Plus (AMF Plus) edge node
Support resilient high-speed ring-based networks with Ethernet Protection Switched Ring (EPSRing™)
Utilize different uplink options to meet requirements, with easy network upgrades over legacy cabling at multi-gigabit speeds, or maximum 10G performance.

Key Features

ACLs manage access and control traffic across the network
AlliedWare Plus™ Enterprise-class operating system
Link monitoring for proactive network health management
Loop and storm protection for maximum uptime
Security features that protect the network and users

Specifications

Product	10M/100M/1/2.5/5 Gigabit Ports	1/10 Gigabit SFP+ Ports	Total Ports	PoE Enabled Ports	Switching Fabric	Forwarding Rate
SE240-10GHXm	8	2	10	8	120Gbps	89.3Mpps
SE240-10GTXm	8	2	10	–	120Gbps	89.3Mpps

Physical

Product	Width x Depth x Height	Unpackaged Weight	Packaged Dimensions	Packaged Weight
SE240-10GHXm	210 x 346 x 42.5 mm (8.27 x 13.62 x 1.67 in)	2.7 kg (5.9 lb)	461 x 371 x 153 mm (18.15 x 14.60 x 6.02 in)	3.8 kg (8.3 lb)
SE240-10GTXm	210 x 275 x 42.5 mm (8.27 x 10.83 x 1.67 in)	1.9 kg (4.2 lb)	433 x 257 x 102 mm (17.44 x 10.12 x 14.01 in)	2.6 kg (5.7 lb)

Power and Noise Characteristics

Product	No PoE Load Max Power Consumption (W)	No PoE Load Max Heat Dissipation (BTU/h)	No PoE Load Noise* (dBA)	Full PoE+ Load Max Power Consumption (W)	Full PoE+ Load Max Heat Dissipation (BTU/h)	Full PoE+ Load Noise* (dBA)
SE240-10GHXm	44	150	32-39	340	1200	39-55
SE240-10GTXm	38	130	32-39	–	–	–

*Noise Under 30°C to 50°C

Power over Ethernet

Product	Max PoE Power (W)	7.5W PoE Sourcing Ports	15.4W PoE Sourcing Ports	30W PoE+ Sourcing Ports	45W PoE+ Sourcing Ports	60W PoE++ Sourcing Ports	90W PoE++ Sourcing Ports
SE240-10GHXm	240	8	8	8	5	4	2
SE240-10GTXm	–	–	–	–	–	–	–

Ordering Information

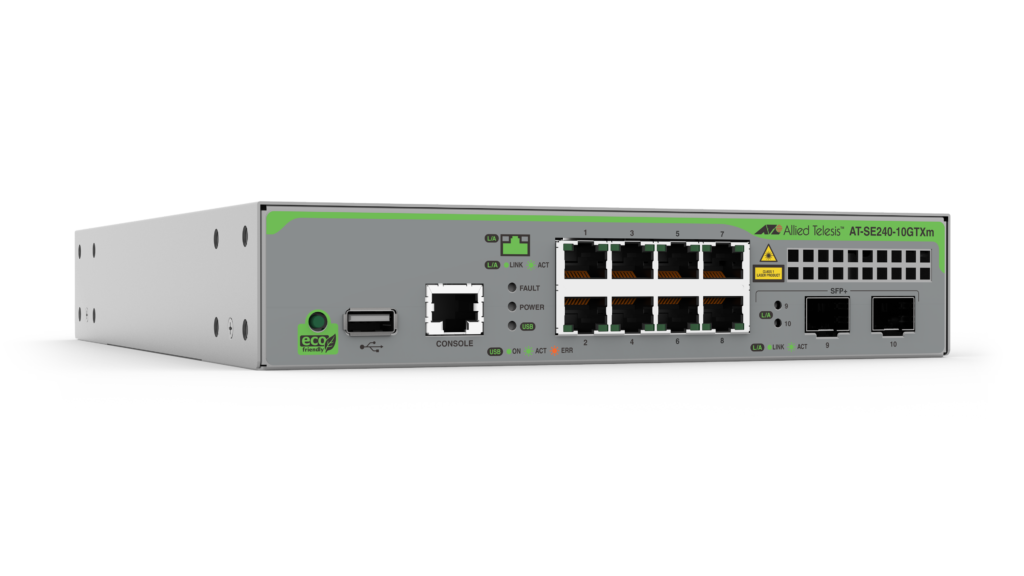

AT-SE240-10GTXm

8-port 10M/100M/1/2.5/5G L2+ switch with 2 SFP+ ports

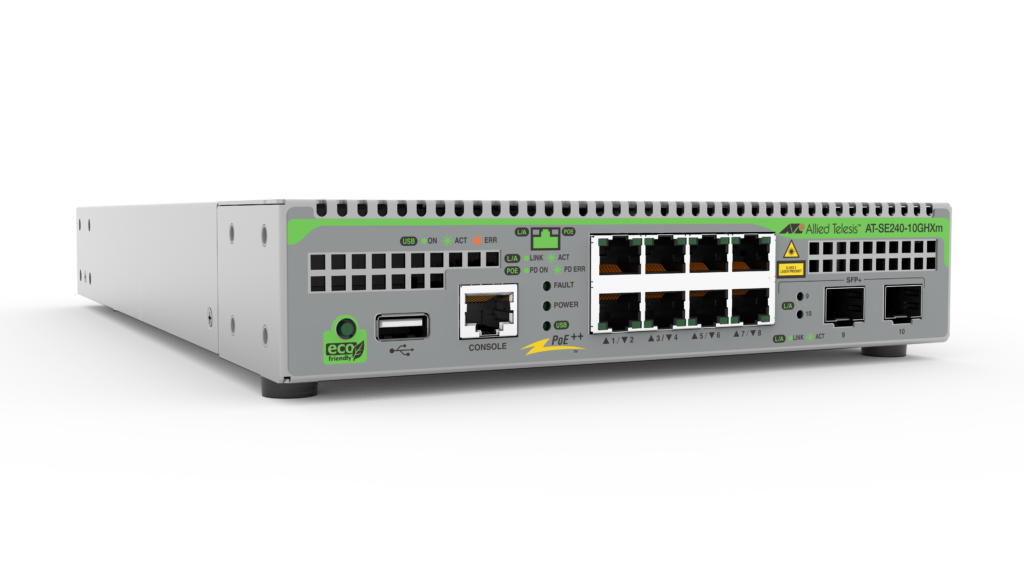

AT-SE240-10GHXm

8-port 10M/100M/1/2.5/5G PoE++ L2+ switch with 2 SFP+ ports

AT-RKMT-J14

Rack mount kit for SE240-10GTXm/10GHXm

AT-RKMT-J15

Rack mount tray for SE240-10GTXm/10GHXm

AT-BRKT-J24

Wall mount bracket

AT-STND-J03

Stand-kit for SE240-10GTXm/10GHXm
