SE540L Series

10 Gigabit Stackable Edge Switches

Allied Telesis CenterCOM SE540L Series 10 Gigabit Layer 3 stackable switches provide resilient high-speed edge connectivity. All ports support up to 10G speed enabling seamless communication for modern applications, and multi-gigabit or fiber connectivity ensures flexible deployment.

Request a quote View Datasheet

Overview

Enable a resilient network edge solution using Virtual Chassis Stacking (VCStack™)
Enjoy high-performing network access with multi-gigabit speeds of 1/2.5/5/10G on all edge ports to connect any device, old or new
Maximize application performance with high throughput 10G (SFP/SFP+) uplink ports
Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)
Support distributed environments with secure long-distance 1/10G (SFP/SFP+) connectivity on the fiber model
Support resilient high-speed ring-based networks with Ethernet Protection Switched Ring (EPSRing™)

Key Features

ACLs manage access and control traffic across the network
Active Fiber Monitoring prevents eavesdropping of sensitive data on fiber uplink ports
AlliedWare Plus™ Enterprise-class operating system
Link monitoring for proactive network health management
Loop and storm protection for maximum uptime
Static Routing and RIP support Layer 3 environments

Specifications

Product	100/1000T/2.5G/5G/10G (RJ-45) Copper Ports	1G/10G SFP+ Ports	Total Ports	Switching Fabric	Forwarding Rate
SE540L-28XTm	24	4	28	560Gbps	416.7Mpps
SE540L-28XS*	–	28	28	560Gbps	416.7Mpps

Physical

Product	Width	Depth	Height	Weight
SE540L-28XTm	440 mm (17.32 in)	290 mm (11.41 in)	44 mm (1.73 in)	4.0 kg (8.8 lb)
SE540L-28XS*	440 mm (17.32 in)	290 mm (11.41 in)	44 mm (1.73 in)	3.8 kg (8.3 lb)

Power and Noise Characteristics

Product	Max Power Consumption	Max Heat Dissipation	Noise
SE540L-28XTm	160W	540 BTU/h	46-63 dBA
SE540L-28XS*	86W	293 BTU/h	39-52 dBA

Noise: tested to ISO7779; front bystander position

* See your Allied Telesis sales representative for availability

Ordering Information

AT-SE540L-28XTm

24-port 100M/1/2.5/5/10G stackable copper
switch with 4 x SFP/SFP+ports, and a single
fixed PSU

AT-SE540L-28XS*

28-port SFP/SFP+ stackable fiber switch,
with a single fixed PSU

* See your Allied Telesis sales representative for availability

All Models

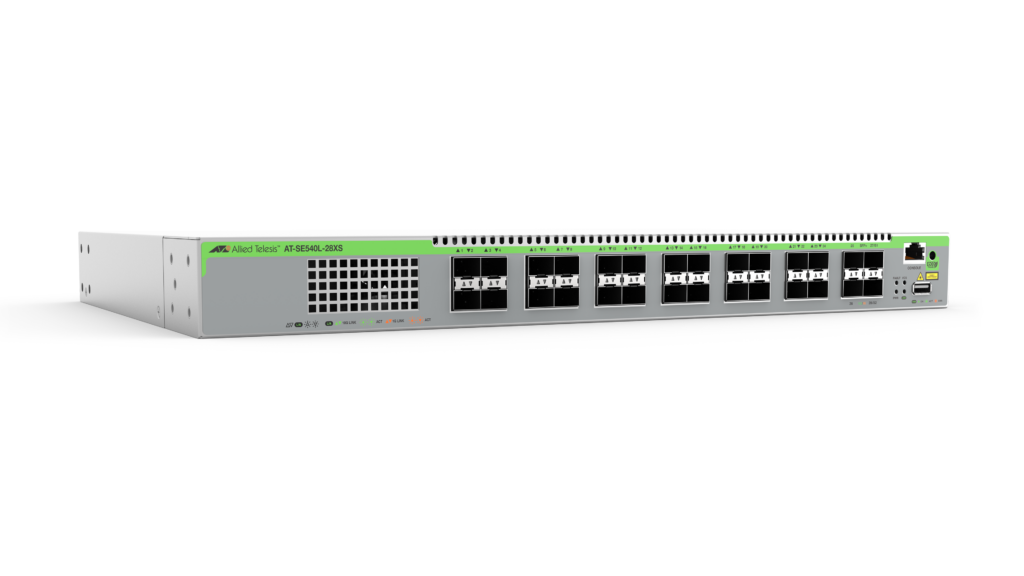

SE540L-28XS

28 x 1/10G (SFP/SFP+) fiber ports, and a single fixed PSU

Add to quote

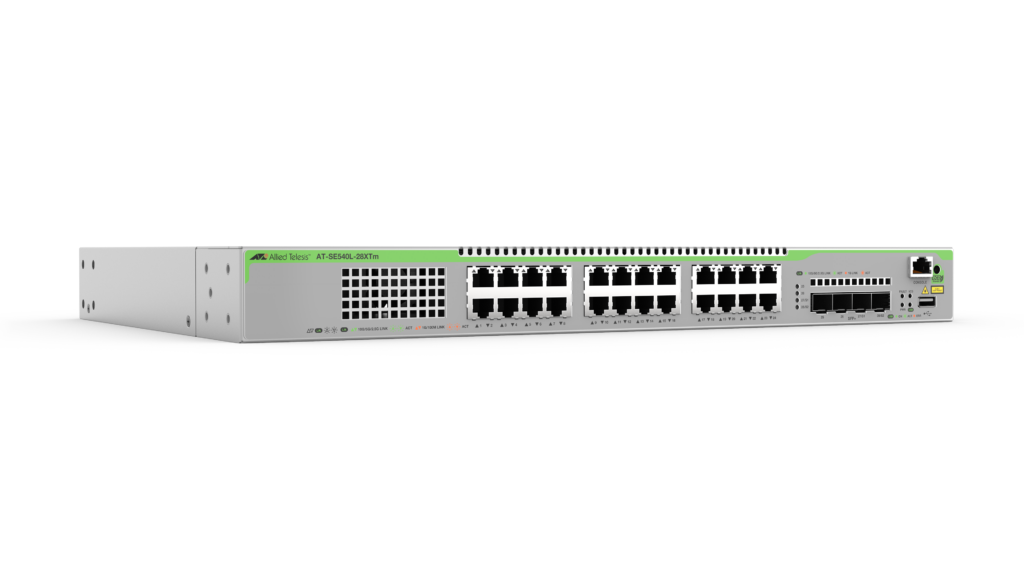

SE540L-28XTm

24 x 1/2.5/5/10G copper ports, 4 x 1/10G (SFP/SFP+) uplinks, and a single fixed PSU

Add to quote
