A cost-effective solution that meets high reliability requirements demanded by industrial applications.
Overview
- allowing only known users
- Easily managed through Web GUI
- IEEE 802.1x port-based authentication guarantee
- SNMP or Telnet
- Supports both Gigabit and Fast Ethernet Small Form-factor Pluggables (SFPs)
- Supports the X-Ring protocol to aid in network recovery within 20ms
- Supports up to 8K MAC addresses and 5.6Gbps of wired speed switching
Key Features
- 12 - 48 VDC redundant power inputs
- 5.6Gbps switching capacity
- CLI management
- Ingress packet filter and egress rate limit
- SNMP v1/v2c/v3
- Supports 100/1000Mbps SFPs
- system configure restore and backup
- Telnet
- TFTP firmware update
- Web
Specifications
| Product | 10/100TX (RJ-45) Copper Ports | 10/100/1000T (RJ-45) Copper Ports | 100/1000X SFP Ports | Switching Fabric | Forwarding Rate |
|---|---|---|---|---|---|
| IFS802SP/POE(W) | 8 | 2 (Combo) | 2 (Combo) | 5.6Gbps | 1.488Mpps |
Physical
| Product | Width x Depth x Height | Weight | Enclosure | Mounting | Protection Rate |
|---|---|---|---|---|---|
| IFS802SP/POE(W) | 7.2 x 11.5 x 15.2 cm (2.8 x 4.5 x 6 in) |
1.42 Kg (3.2 lb) | Metal with aluminum shell | DIN rail or wall mount | IP30 |
Power over Ethernet
| Product | Full PoE Load Max Power Consumption | Full PoE Load Max Heat Dissipation | Max PoE Power | 15.4W Max PoE Ports |
|---|---|---|---|---|
| IFS802SP/POE(W) | 142.5W | 78.2 BTU/h | 124W | 8 |
Â
Ordering Information
AT-IFS802SP
8 × 10/100TX + 2 x 10/100/1000T/SFP
Combo Managed Industrial Switch
AT-IFS802SP/PoE (W)
8 x 10/100TX + 2 10/100/1000T/SFP Combo SFP
Combo Wide Operating Temperature
(-40oC ~75 oC) Managed Industrial Switch
All Models
Some models are End-of-Sale. Click here for more information

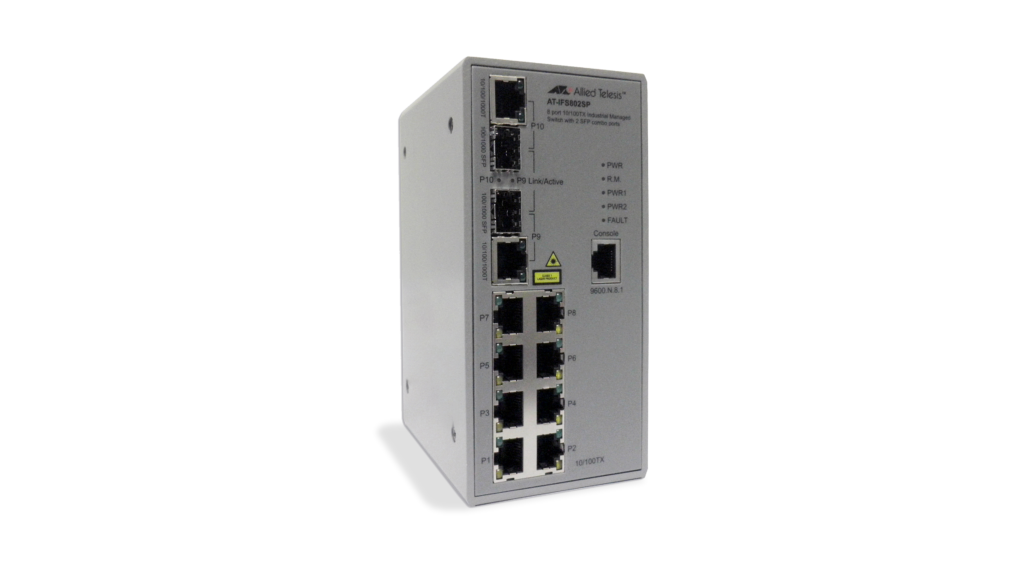

IFS802SP
8x 10/100T, 2x 100/1000X SFP combo, Fast Ethernet Industrial Switch
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
20 Sep 2018
20 Sep 2018
20 Sep 2018
End of Software Support
19 Sep 2020
19 Sep 2020
20 Sep 2020
End of Life
20 Sep 2023
20 Sep 2023
20 Sep 2023
Alternate Products

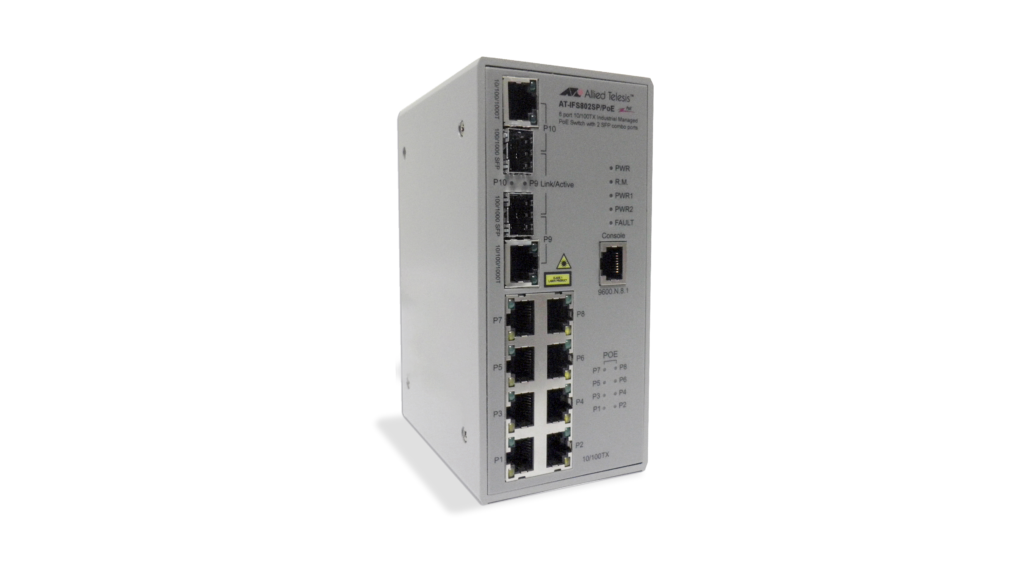

IFS802SP/POE(W)
8x 10/100T, 2x 100/1000X SFP combo, Fast Ethernet Industrial Switch, PoE Support
Notice: This product is not available for purchase.
End-of-Sale information
End of Sale Announced
12 Sep 2018
12 Sep 2018
12 Sep 2018
End of Software Support
11 Sep 2020
12 Sep 2020
11 Sep 2020
End of Life
12 Sep 2023
12 Sep 2023
12 Sep 2023
Alternate Products
Documentation
Datasheet: IFS802SP/POE (W)
Product information for the IFS802SP/POE (W).
Installation and User Guide: AT-IFS802SP
Installation and User Guide for the AT-IFS802SP.
Installation and User Guide: AT-IFS802SP/POE
This document contains the hardware installation and user's guide instructions for the AT-IFS802SP/POE.
Translated Safety Statements
Here are translations of the safety statements. Languages include English, German, Spanish, French, Italian, and Swedish.
Allied Telesis PoE Matrix
Power over Ethernet Switches
Visio Stencil: AT-IFS802SP-80 and /POE-80
These Visio stencils are for the AT-IFS802SP-80 and /POE-80.
